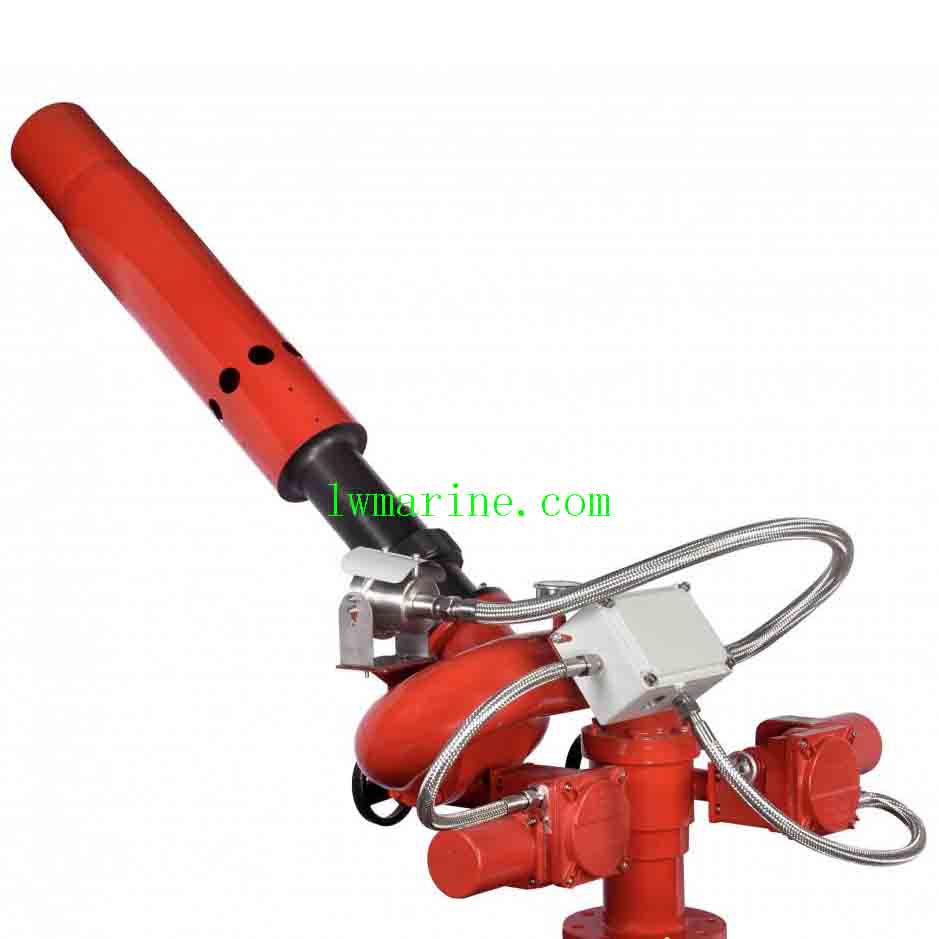

Automatic Fire Monitor | Intelligent Infrared Detection & Suppression System
Overview:
Our advanced Automatic Fire Monitor combines state-of-the-art infrared sensing, digital signal processing, smart communication control, and computer automation technologies to deliver unparalleled fire protection. This intelligent system provides continuous 24/7 monitoring of designated areas, ensuring immediate response to fire emergencies. Upon detection, it automatically initiates a comprehensive horizontal and vertical scanning sequence, precisely locates the fire source, activates alarms, starts pumps, opens valves, and delivers targeted water suppression—all without human intervention. The system automatically ceases operation once the fire is completely extinguished.
Key Performance Features:
-
High-Efficiency Flow Rate: Delivers optimal water volume matched to fire size and type for rapid suppression.
-
Extended Throw Distance: Engineered to overcome environmental challenges like wind and obstacles for effective reach.
-
Precision Operating Pressure: Calibrated to provide sufficient force without risking property damage or personnel safety.
-
Full 360° Rotation Angle: Ensures complete area coverage with exact directional control.
-
Intuitive Control System: Features user-friendly operation with precise movement and flow control, plus integrated safety mechanisms.
-
Exceptional Reliability: Built to withstand extreme conditions with robust construction and minimal maintenance requirements.
Technical Specifications:
| Model | Flow Range (L/S) | Rated Pressure (MPa) | Working Pressure (MPa) | Protection Radius (m) | Rotation Angle (°) | Fire Locating Time (s) | Working Temperature (°C) | Connection Type | Installation Method | Installation Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZDMS0.6/5S | 5 | 0.6 | 0.4-0.8 | 30 | 0-360 | ≤30 | -10~55 | G1″ Thread | Ceiling Mount | 6~25 |
| ZDMS0.6/10S | 10 | 0.6 | 0.4-0.8 | 35 | 0-360 | ≤30 | -10~55 | G1¼” Thread | Ceiling Mount | 6~25 |
| ZDMS0.8/20S | 20 | 0.8-0.9 | 0.6-1.0 | 50 | 0-360 | ≤60 | -10~55 | DN65 Flange | Ceiling Mount | 6~25 |
| ZDMS0.9/30S | 30 | 0.8-0.9 | 0.6-1.0 | 55 | 0-360 | ≤60 | -10~55 | DN65 Flange | Ceiling Mount | 6~25 |
The description/sizes may be different with goods, please check with us when order.
