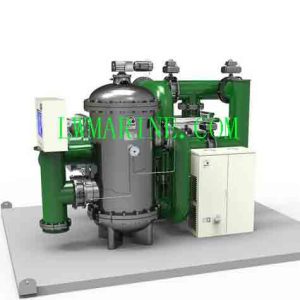

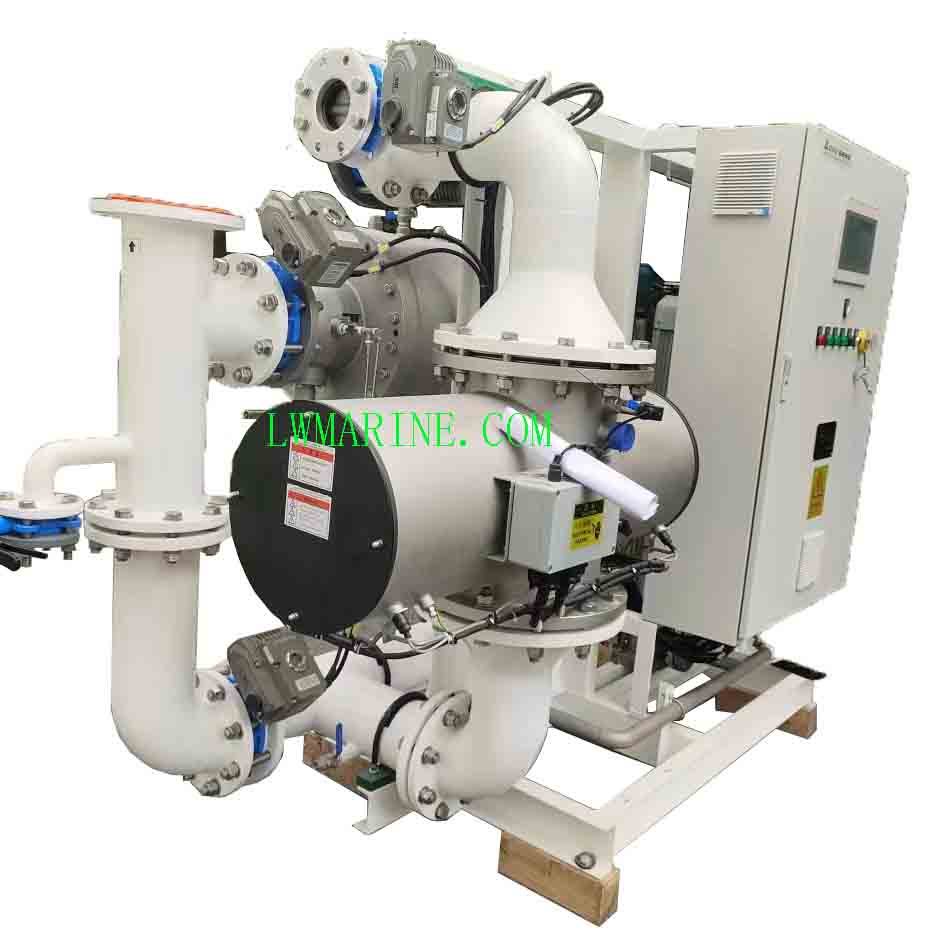

Advanced Automated Ballast Water Management System for Marine Vessels
Our state-of-the-art Automated Ballast Water Management System is specifically engineered to provide high – flow capacity treatment solutions for sizable commercial vessels and tankers. It harnesses the well – established medium – pressure ultraviolet (MPUV) disinfection technology. This powerful system is designed to effectively halt the dissemination of invasive aquatic species via ships’ ballast water, while strictly adhering to the regulations set by the International Maritime Organization (IMO) and the US Coast Guard (USCG). The chemical – free UV treatment method offers outstanding environmental protection and poses no occupational risks to the ship’s crew.
Key Features & Advantages
High – Capacity Treatment Capability
- Flow Rate: Boasts a flow rate ranging from 2600 – 3000 m³/h, making it an ideal choice for large – scale vessels and tankers that require efficient ballast water management.
MPUV Disinfection Technology
- Chemical – Free Solution: Utilizes a chemical – free treatment process that effectively eradicates invasive species without generating any hazardous by – products, ensuring the safety of the marine ecosystem.
Crew Safety Guarantee
- Zero Active Substances: No active substances are produced during the treatment, providing complete occupational safety for the crew members on board.
Cost – Effective Operation
- Lower Operational Expenses: Compared to chemical treatment systems, our system offers significant savings in operational costs, making it a more economical option for ship owners and operators.
Eco – Friendly Design
- Zero Chemical Emission: There is zero chemical discharge, resulting in minimal environmental impact and contributing to a cleaner marine environment.
Versatile Installation Options
- Horizontal or Vertical Layouts: The system is available in both horizontal and vertical layout configurations, allowing for flexible installation according to the available space on the vessel.
Compact Modular Structure
- Three – Unit System: Comprises a three – unit system, with each unit measuring 3515×1300×2465mm, enabling space – efficient installation on various types of ships.
IACS Certification Compatibility
- Approvals from Major Societies: Ready to be certified by all major classification societies, ensuring compliance with international standards and facilitating smooth vessel operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | P – 3000 |
| Flow Rate Range | 2600 – 3000 m³/h |
| Horizontal Layout Dimensions | 3 × (3515×1300×2465 mm) |
| Vertical Layout Dimensions | 3 × (3515×1300×2465 mm) |
| Power Rating | Please contact us for detailed power specifications |
| Treatment Technology | Medium Pressure UV Disinfection |
| UV Wavelength | 200 – 280nm |
| Compliance Standards | IMO & USCG Regulations |
System Operating Mechanisms
Ballasting Process
- Water Intake: Ballast water is drawn in through the ballast pump and then passes through a multi – stage filtration system.
- Pre – Filtration: The pre – filtration stage removes large inorganic particles, zooplankton, and phytoplankton, preventing them from entering the subsequent treatment stages.
- MPUV Disinfection: The MPUV reactor emits ultraviolet irradiation in the range of 200 – 280nm, effectively disinfecting the water and eliminating invasive species and pathogens.
- Storage: The treated water is then directed to the ballast tanks, ensuring that it is free from harmful organisms.
De – ballasting Process
- Bypass Filtration: During discharge operations, the ballast water bypasses the primary filtration stage.
- Secondary Disinfection: It flows directly through the MPUV reactor for secondary disinfection treatment, ensuring compliance with regulations before being safely discharged overboard.
UV Disinfection Benefits
Non – Chemical Approach
- No Hazardous Substances: No hazardous substances are used or produced during the UV disinfection process, making it a safe and environmentally friendly option.
Immediate Effectiveness
- Instant Microbial Inactivation: It provides instant microbial inactivation without the need for a specific contact time, ensuring quick and efficient treatment.
Broad – Spectrum Efficacy
- Elimination of Multiple Organisms: Effectively eliminates bacteria, viruses, plankton, and a wide range of microorganisms, providing comprehensive protection against waterborne threats.
No Residual Handling
- Simplified Process: There is no need for neutralization or secondary treatment steps, simplifying the overall treatment process and reducing operational complexity.
Available IACS Certifications
- BV (Bureau Veritas)
- CCS (China Classification Society)
- NK (Nippon Kaiji Kyokai)
- DNV GL (Det Norske Veritas Germanischer Lloyd)
- IRS (Indian Register of Shipping)
- ABS (American Bureau of Shipping)
- LR (Lloyd’s Register)
- RMRS (Russian Maritime Register of Shipping)
- RINA (Registro Italiano Navale)
Applications
- Large Commercial Vessels: Suitable for large commercial tankers and Very Large Crude Carriers (VLCCs) that handle large volumes of cargo and require efficient ballast water management.
- Container and Bulk Carriers: Can be installed on container ships and bulk carriers to ensure compliance with environmental regulations during their global voyages.
- LNG Carriers and Offshore Vessels: Ideal for LNG carriers and large offshore vessels that operate in sensitive marine environments and need reliable ballast water treatment solutions.
- Cruise and Passenger Liners: Provides a safe and effective ballast water management system for cruise ships and passenger liners, ensuring the well – being of passengers and crew while protecting the marine ecosystem.
- Naval and Special Purpose Vessels: Can be customized for naval auxiliary and special – purpose vessels to meet their unique operational requirements and compliance standards.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
