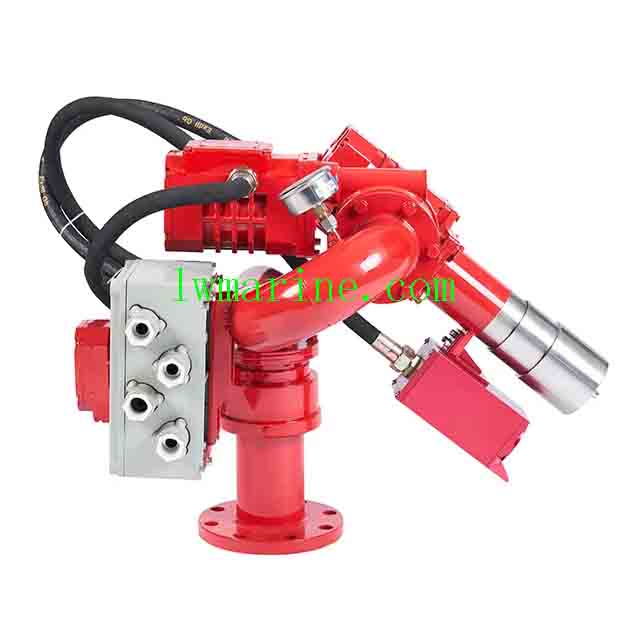

Auto-Tracking and Locating Fire Monitor | Intelligent Fire Suppression System
Overview:
Our advanced Auto-Tracking and Locating Fire Monitor uses cutting-edge red-ultraviolet flame detection technology to identify fires by sensing the unique spectral signatures of burning materials. This fully automated system provides 24/7 monitoring of protected areas, ensuring rapid response to fire emergencies. Upon detection, it instantly activates, sends an alarm to the control center, performs a full-area scan, precisely locates the fire source, and automatically targets and extinguishes the blaze with high accuracy.
Key Features:
-
Automatic Fire Detection & Suppression: Utilizes advanced spectral analysis technology for early fire recognition and immediate response.
-
Precision Targeting: Accurately locates and aims at fire sources with minimal response time.
-
24/7 Continuous Monitoring: Provides round-the-clock surveillance of protected environments.
-
Strong Anti-Interference Capability: Reliable performance even in challenging conditions with minimal false alarms.
-
Integrated Alarm System: Automatically alerts fire control centers when fire is detected.
-
Full-Area Scanning: Complete 360° rotation ensures no blind spots in coverage.
Technical Specifications:
| Model | Flow Range (L/S) | Rated Pressure (Mpa) | Working Pressure (Mpa) | Protection Radius (m) | Rotation Angle (°) | Fire Locating Time (s) | Working Temperature (°C) | Connecting Method | Installation Method | Installation Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZDMS0.6/5S | 5 | 0.6 | 0.4-0.8 | 30 | 0-360 | ≤30 | -10~55 | G1″ Thread | Hoisting | 6~25 |
| ZDMS0.6/10S | 10 | 0.6 | 0.4-0.8 | 35 | 0-360 | ≤30 | -10~55 | G1¼” Thread | Hoisting | 6~25 |
| ZDMS0.8/20S | 20 | 0.8-0.9 | 0.6-1.0 | 50 | 0-360 | ≤60 | -10~55 | DN65 Flange | Hoisting | 6~25 |
| ZDMS0.9/30S | 30 | 0.8-0.9 | 0.6-1.0 | 55 | 0-360 | ≤60 | -10~55 | DN65 Flange | Hoisting | 6~25 |
The description/sizes may be different with goods, please check with us when order.
