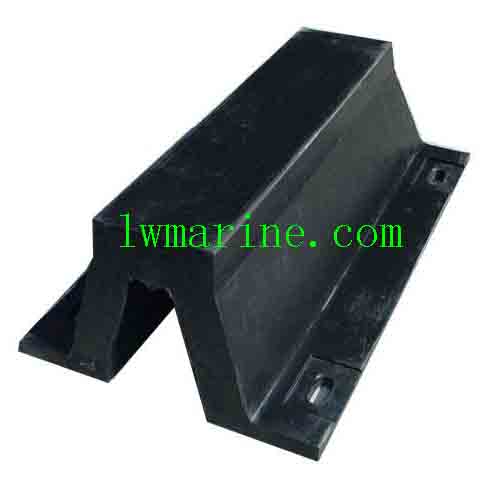

Super Arch Type (Type SB) Rubber Fender – High-Performance Marine Bumper (Equivalent to Type DA-B)
Our Super Arch Type (Type SB) Rubber Fender, also known as the marine-grade Type DA-B equivalent, is engineered to provide superior protection for vessels and docking structures. This advanced rubber fender is designed with a head-embedded plate and a top impingement board, significantly reducing surface pressure and the friction coefficient during impact. This feature ensures enhanced durability and longevity, even under the most demanding marine conditions.
Key Features:
- Reduced Surface Pressure & Friction: The integrated head-embedded plate and top impingement board minimize surface pressure and friction, enhancing the fender’s performance and lifespan.
- Consistent Dimensions: The fender body and installation fittings maintain identical dimensions to the SA- (DA-A) type, ensuring compatibility and ease of replacement.
- Customizable Options: Based on user requirements, we offer limit adjustments to certain dimensions of the SA (DA) type, resulting in the LMD type. This variant retains the main structure and mechanical properties of the original while providing additional customization options. The LMD type can be further extended to LMD-A and LMD-B types for specific applications.
Applications:
- Ideal for use on various marine vessels, including cargo ships, ferries, and tugboats.
- Suitable for docking structures, piers, and quaysides, providing reliable protection against vessel impacts.
- Perfect for marine construction projects where durability and performance are critical.
Specifications:
| Type | H (mm) | L (mm) | L1 (mm) | C (mm) | Q (mm) | n | B (mm) | B1 (mm) | B2 (mm) | B3 (mm) | h (mm) | a (mm) | b (mm) | e (mm) | f (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HS150 x 1000 | 150 | 1000 | 1075 | 110 | 855 | 1 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
| HS150 x 2000 | 150 | 2000 | 2075 | 107.5 | 620 | 3 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
| HS150 x 3000 | 150 | 3000 | 3075 | 107.5 | 715 | 4 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
| HS200 x 1000 | 200 | 1000 | 1100 | 120 | 860 | 1 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
| HS200 x 2000 | 200 | 2000 | 2100 | 120 | 620 | 3 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
| HS200 x 3000 | 200 | 3000 | 3100 | 120 | 715 | 4 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
| … (Other sizes follow the same format) … | |||||||||||||||
| HS1000 x 1500 | 1000 | 1500 | 2000 | 200 | 800 | 2 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
FAQs (Frequently Asked Questions)
Q1: What makes the Super Arch Type (Type SB) Rubber Fender superior to other types?
A1: The Super Arch Type (Type SB) Rubber Fender stands out due to its head-embedded plate and top impingement board, which significantly reduce surface pressure and friction, enhancing durability and performance.
Q2: Can the Super Arch Type (Type SB) Rubber Fender be customized to fit specific requirements?
A2: Yes, we offer limit adjustments to certain dimensions of the SA (DA) type, resulting in the LMD type, which can be further extended to LMD-A and LMD-B types for specific applications.
Q3: What are the main applications of the Super Arch Type (Type SB) Rubber Fender?
A3: This fender is ideal for use on marine vessels, docking structures, piers, quaysides, and marine construction projects, providing reliable protection against impacts.
Q4: Are the dimensions of the Super Arch Type (Type SB) Rubber Fender consistent with other types?
A4: Yes, the fender body and installation fittings maintain identical dimensions to the SA- (DA-A) type, ensuring compatibility and ease of replacement.
Q5: How do I choose the right size of the Super Arch Type (Type SB) Rubber Fender for my application?
A5: The right size depends on the specific requirements of your vessel or docking structure. Refer to our detailed specifications table to select the appropriate dimensions based on height (H), length (L), and other critical measurements.
