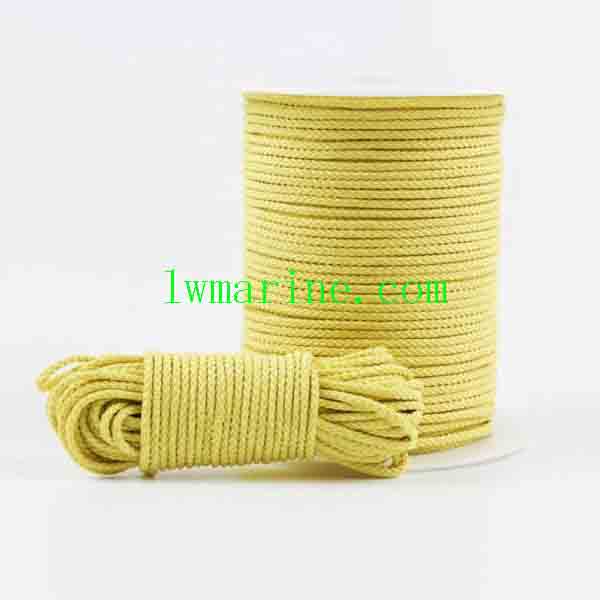

Aramid Fiber Rope
General Description
It has serial products including 3 strands, 8 strands, 12 strands and double braided aramid fiber rope.
Aramid is man-making fiber with high performance, through a special process including polymerization, spinning, twisting, heat setting. Thus the rope is more stronger. Therefore it has very stable high strength and heat resisting feature.
Main performance
-
Material: High performance Aramid fiber yarns
-
Construction: 3, 8, 12 Strands, Double braided
-
Applications: Special fields such as coal mine, steel plant, harbor, ship, oil well etc.
-
High tensile strength: Excellent
-
Specific gravity: 1.44
-
Elongation: 5% at break
-
High fatigue resistance: Excellent
-
Good resistance to uv and chemicals: Excellent
-
Superior abrasion resistance: Excellent
-
No difference in strength when wet or dry: Excellent
-
-40°C – 350°C: Suited for normal operation
-
Other sizes available upon request: Available upon request
Parameter Table
Aramid fiber braided rope (3 strands)
| MM | KTEX (Line Density) | KN (Breaking Strength) |
|---|---|---|
| 6 | 32 | 30 |
| 8 | 52 | 34 |
| 10 | 81 | 55 |
| 12 | 120 | 75 |
| 14 | 166 | 87 |
| 18 | 265 | 172 |
| 20 | 328 | 205 |
| 24 | 479 | 306 |
| 28 | 636 | 406 |
| 32 | 875 | 524 |
| 36 | 1071 | 656 |
| 40 | 1295 | 825 |
8-strand aramid fiber rope (8 strands)
| MM | KTEX (Line Density) | KN (Breaking Strength) |
|---|---|---|
| 8 | 52 | 34 |
| 10 | 81 | 55 |
| 12 | 120 | 75 |
| 14 | 166 | 87 |
| 18 | 265 | 172 |
| 20 | 328 | 205 |
| 24 | 479 | 306 |
| 28 | 636 | 406 |
| 32 | 875 | 524 |
| 36 | 1071 | 656 |
| 40 | 1295 | 825 |
Double braided aramid fiber rope (12 strands)
| MM | KTEX (Line Density) | KN (Breaking Strength) |
|---|---|---|
| 6 | 32 | 30 |
| 8 | 52 | 34 |
| 10 | 81 | 55 |
| 12 | 120 | 75 |
| 14 | 166 | 87 |
| 18 | 265 | 172 |
| 20 | 328 | 205 |
| 24 | 479 | 306 |
| 28 | 636 | 406 |
| 32 | 875 | 524 |
| 36 | 1071 | 656 |
| 40 | 1295 | 825 |
Endless Sling
Technology Comparison
Our company through the research and development of high molecular weight polyethylene fiber woven coated ring sling and has strong bearing capacity, light weight, low elongation, convenient operation and long service life, high safety coefficient, easy to maintenance etc. The bearing core is ultra high molecular weight polyethylene fiber, sling the outer protective layer by loading and unloading double synthetic fiber woven and can produce different series of different slings according to the requirements of the environment. Sling after use should be paid attention to in the operation were examined before and after the outer protective layer, once found protective layer is severely damaged, rope yarn breaking or can be inside the core must be timely maintenance and repair procedure is simple, convenient, production technology of this product is international initiative. In addition, I also can according to customer requirements custom-made design of polyester fiber, nylon fiber rope sling.
UHMWPE Endless Sling Parameter Table (Unit: SWL)
| Model (UHMWPE) | Approx. Diameter (mm) | Safe Working Load (TON) | Model (UHMWPE) | Approx. Diameter (mm) | Safe Working Load (TON) |
|---|---|---|---|---|---|
| UPE01-1 | 12 | 1000 | UPE01-40 | 70 | 40000 |
| UPE01-2 | 18 | 1500 | UPE01-60 | 80 | 60000 |
| UPE01-3 | 20 | 2000 | UPE01-80 | 85 | 80000 |
| UPE01-4 | 22 | 3000 | UPE01-90 | 90 | 90000 |
| UPE01-5 | 24 | 5000 | UPE01-95 | 95 | 95000 |
| UPE01-6 | 26 | 6000 | UPE01-100 | 100 | 100000 |
| UPE01-7 | 28 | 8000 | UPE01-110 | 110 | 110000 |
| UPE01-10 | 35 | 10000 | UPE01-150 | 150 | 150000 |
| UPE01-15 | 40 | 15000 | UPE01-200 | 165 | 200000 |
| UPE01-20 | 50 | 20000 | UPE01-250 | 185 | 250000 |
| UPE01-25 | 55 | 25000 | UPE01-300 | 210 | 300000 |
| UPE01-30 | 60 | 30000 | UPE01-500 | 250 | 500000 |
Note: Other sizes can be customized
Note: The description may be different with the product, please contact us for quotation.
