Appliance for Pilft Ladder
Used for pilot ladder devices of various ships with a distance of 9m to 15m from the sea surface to the ship’s entrance. Used for 9M-15M of height is defined as the distance from the accommodation of ship to the sea level.
Technical Parameter Table
| Number of Steps | L (mm) | L1 (mm) | H (mm) | I (mm) | I1 (mm) | I2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 12 | 3600 | 3270 | 2900 | 1000 | 2100 | ~390 | 283 |
| 14 | 4200 | 3600 | 3400 | 1000 | 2300 | ~380 | 295 |
| 16 | 4800 | 3900 | 3900 | 1000 | 2600 | ~330 | 314 |
| 18 | 5400 | 4350 | 4400 | 1000 | 3000 | ~440 | 324 |
| 20 | 6000 | 4650 | 4900 | 1000 | 2100, 2400 | ~395 | 369 |
| 22 | 6600 | 5250 | 5400 | 1000 | 2400 | ~650 | 385 |
| 24 | 7200 | 5850 | 5900 | 1000 | 2700 | ~910 | 404 |
| 26 | 7800 | 6450 | 6400 | 1000 | 3000 | ~1160 | 425 |
Marking Example
12-step pilot ladder device:
Appliance for pilft ladder 12 CB/T 3561-93

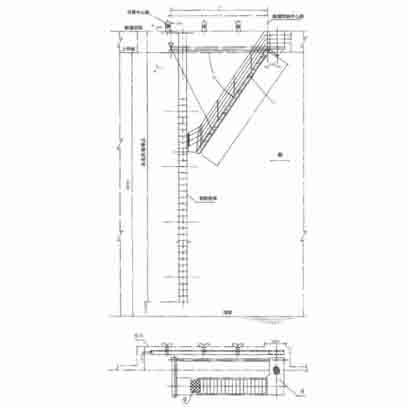

Diagram Description
The diagram shows the structure of the pilot ladder device, including the overall side view, top view, and detailed views of various components. The components are labeled as follows:
1 – Ladder; 2 – Lifting rope; 3 – Turnover device; 4 – Arch; 5 – Tightening hook; 6 – Bracket; 7 – Support frame; 8 – Upper platform; 9 – Lower platform.
Attention please: The description might be incorrect, please contact us for confirmation.
