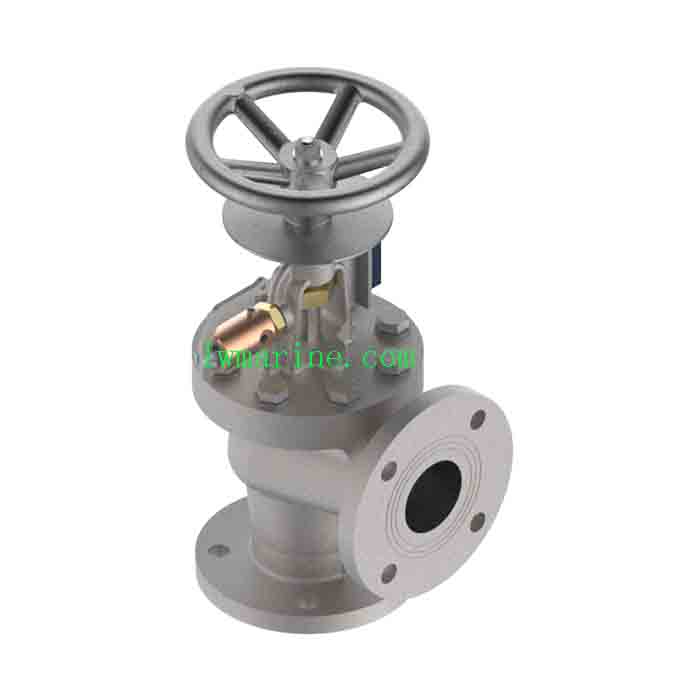

Angle Quick Closing Valve

Angle Quick Closing Valve

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Marine DIN Angle Quick Closing Valve – Emergency Shutoff Solution for Marine Applications

Product Overview
Our Marine DIN Angle Quick Closing Valve represents critical safety technology designed for emergency fluid containment in marine environments. Specifically engineered for confined spaces, these spring-loaded emergency shutoff valves provide instant closure in fuel transfer, ballast systems, and other critical marine applications. Featuring a compact angled design and rapid-response mechanism, they ensure maximum safety compliance while optimizing space utilization in vessel piping systems.

Key Features & Benefits

✔ Emergency Rapid Closure

  • Spring-loaded piston mechanism for instantaneous shutoff

  • Manual latch release for emergency activation

  • Fail-safe operation ensures closure even during power failure

✔ Space-Optimized Design

  • 90-degree angle configuration for compact installations

  • Ideal for confined engine room spaces and complex piping layouts

  • Reduced footprint without compromising performance

✔ Premium Marine Materials

  • Body Options: Bronze or stainless steel construction

  • Corrosion Resistance: Full marine-grade corrosion protection

  • Durability: Engineered for long service life in harsh saltwater environments

✔ Certified Safety Compliance

  • DIN standard compliance for international acceptance

  • Suitable for hazardous fluid containment applications

  • Reliable performance in emergency situations

Technical Specifications

Parameter Specification
Pressure Rating PN10/16
Size Range DN15 to DN125
Materials Bronze, Stainless Steel
Operation Manual quick-closing mechanism
Installation Angled configuration
Applications Fuel systems, Ballast systems, Emergency shutdown

Detailed Size Specifications

Small Size Series (DN15-DN40):

CODE DN D (mm) L (mm) H (mm) M (mm) Weight (kg)
87 46 11 15 95 90 180 125 5
87 46 12 20 105 95 180 125 6
87 46 13 25 115 100 185 125 7.5
87 46 14 32 140 105 185 125 9
87 46 15 40 150 115 215 150 12

Medium Size Series (DN50-DN125):

CODE DN D (mm) L (mm) H (mm) M (mm) Weight (kg)
87 46 16 50 165 125 215 150 16
87 46 17 65 185 145 250 150 27
87 46 18 80 200 155 265 150 33
87 46 19 100 220 175 315 200 46
87 46 20 125 250 200 340 200 66

The description/sizes may be different with goods, please check with us when order.
