JIS F7330 Forged Steel Angle Globe Valve – Ultra High-Pressure 40K Marine Flow Control Solution
Product Overview

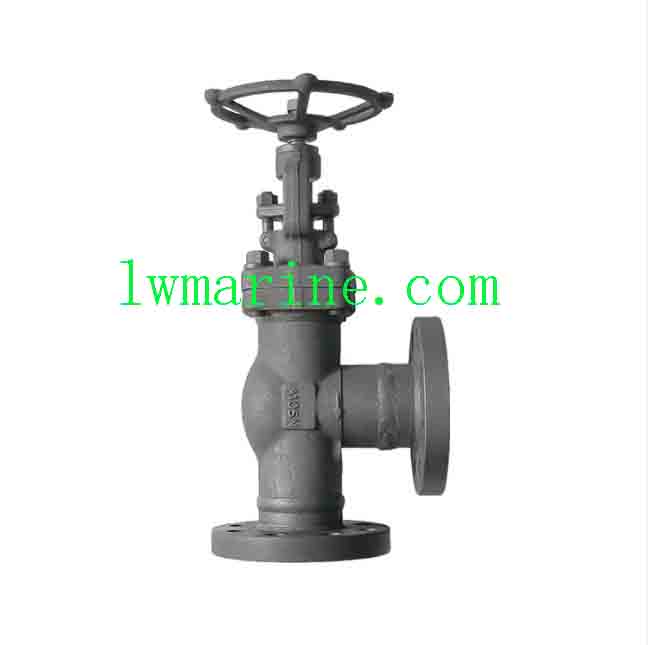

The JIS F7330 Forged Steel Angle Globe Valve represents the ultimate in high-pressure marine valve technology, engineered for extreme operating conditions in shipbuilding, offshore platforms, and critical vessel systems. Manufactured to exacting JIS standards with full compliance to JIS B2220 flange dimensions, this premium forged steel valve delivers unmatched performance in 40K pressure applications. Featuring stainless steel internals and dual configuration options, it ensures absolute reliability in preventing reflux in fuel oil and lubrication piping systems where failure is not an option.
Key Features & Benefits
✔ Ultra High-Pressure Performance
-
Maximum Pressure Rating: 40K for the most demanding marine applications
-
Dual Configuration Options: Type “S” (6-10mm) and Type “F” (15-25mm)
-
Forged Steel Construction: Superior strength and pressure integrity
✔ Premium Material Engineering
-
Body: High-strength forged steel for maximum pressure resistance
-
Stem & Disc: Stainless steel components for corrosion resistance and durability
-
Custom Material Options: Client-specified material configurations available
✔ Dual Configuration Design
-
Type “S”: Compact design for precision instrumentation applications
-
Type “F”: Standard flange design for general high-pressure services
-
JIS B2220 Flange Compliance: Perfect integration with marine piping systems
✔ Certified Marine Excellence
-
Manufactured to JIS quality standards
-
Full material traceability and testing documentation
-
OEM and ODM services available
Technical Specifications: JIS F7330 40K Angle Globe Valve Series
Type “S” (Compact Precision Design):
| IMPA Code | Size (mm) | L1 (mm) | L2 (mm) | L3 (mm) | K (mm) | H (mm) | B2 (mm) | D3 |
|---|---|---|---|---|---|---|---|---|
| 750671 | 6 | 51 | 38 | 51 | 12 | 136 | 30 | M20×1.5 |
| 750672 | 10 | 51 | 45 | 58 | 16 | 136 | 41 | M24×2 |
Type “F” (Flange Connection Design):
| IMPA Code | Size (mm) | L1 (mm) | D (mm) | C (mm) | n | h (mm) | t (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| 750676 | 15 | 90 | 115 | 80 | 4 | 19 | 20 | 185 |
| 750677 | 20 | 95 | 120 | 85 | 4 | 19 | 20 | 204 |
| 750678 | 25 | 100 | 130 | 95 | 4 | 19 | 22 | 224 |
The description/sizes may be different with goods, please check with us when order.
