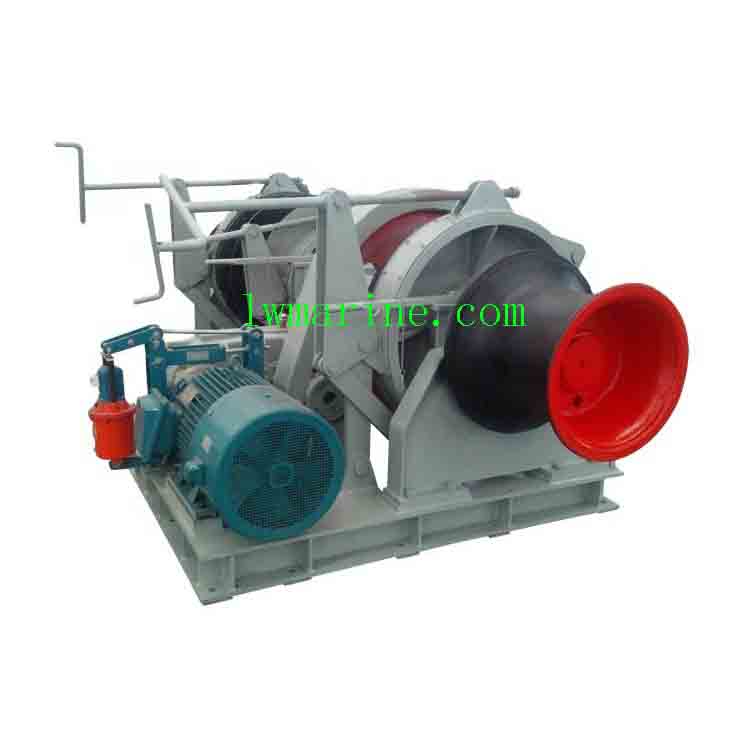

Marine Electric Combined Anchor Windlasses
Our Marine Electric Combined Anchor Windlasses are robust, high-performance deck machinery system designed to ensure secure and efficient vessel anchoring and mooring operations. Engineered to withstand harsh marine environments, this electric anchor windlass integrates dual functionality—serving as both an anchor handling system and a mooring winch—making it ideal for commercial ships, offshore platforms, and large vessels requiring reliable traction and hoisting capabilities.
Key Features & Benefits:
✅ Dual-Purpose Functionality – Combines anchor deployment/retrieval and mooring line handling (when equipped with a warping head) for versatile deck operations.
✅ High Traction Power – Electric-driven winch with single, double, or multiple drums to meet varying hoisting, pulling, and rotary work demands.
✅ Heavy-Duty Performance – Suitable for rated loads up to 120 tons, ensuring stability in rough seas and emergency positioning control.
✅ Customizable Specifications – Available in multiple chain diameters (28mm–90mm) and working speeds (≥9 m/min) to match your vessel’s requirements.
✅ Durable Construction – Built with corrosion-resistant materials for longevity in saltwater environments.
✅ Easy Installation – Despite its heavy-duty design, the windlass is engineered for straightforward setup on deck.
✅ Flexible Power Supply – Compatible with various onboard power systems (AC/DC) based on your vessel’s configuration.
Main Technical Specifications:
| Chain Diameter (mm) | Working Speed (m/min) | Mooring Load (KN) | Working Load (KN) | Supporting Load (KN) | Motor Power (kW) |
|---|---|---|---|---|---|
| 28/30 | ≥9 | 30 | 33.3/38.3 | 202/231 | 15 |
| 32/34/36 | ≥9 | 30 | 43.5/49.1/55.1 | 261/294/329 | 22 |
| 38/40/42 | ≥9 | 40 | 61.4/68.0/75.0 | 365/402/442 | 30 |
| 44/46/48 | ≥9 | 50 | 82.3/89.9/97.9 | 483/526/570 | 37 |
| 50/52/54 | ≥9 | 50 | 106.3/114.9/132.9 | 617/664/713 | 45 |
| 56/58/60 | ≥9 | 60 | 133.2/143.0/153.0 | 764/816/870 | 55 |
| 66/68 | ≥9 | 100 | 185.1/195.5 | 1040/1098 | 75 |
| 70/73 | ≥9 | 100 | 208.3/226.5 | 1160/1254 | 75 |
| 76/78 | ≥9 | 125 | 245.5/258.6 | 1350/1416 | 90 |
| 81/84 | ≥9 | 140 | 311.7/335.2 | 2171/2320 | 110 |
| 87/90 | ≥9 | 150 | 359.5/384.8 | 2473/2629 | 120 |
Application Fields:
🔹 Commercial Shipping – Essential for tankers, bulk carriers, and container ships requiring secure anchoring in deep waters.
🔹 Offshore Platforms – Used for station-keeping and mooring operations in oil & gas exploration.
🔹 Large Vessels – Ideal for cruise ships, ferries, and naval vessels needing reliable deck machinery.
🔹 Emergency Positioning – Provides controlled anchoring during storms or mechanical failures.
Frequently Asked Questions (FAQs):
Q1: What is the difference between a single-drum and double-drum anchor windlasses?
A: A single-drum windlass is designed for basic anchor handling, while a double-drum windlass allows simultaneous mooring line management, improving operational efficiency.
Q2: Can this windlass be customized for different chain sizes?
A: Yes, we offer customizable chain diameters (28mm–90mm) and working speeds to match your vessel’s specifications.
Q3: Is this electric windlass suitable for saltwater environments?
A: Absolutely! Our windlass is built with corrosion-resistant materials, ensuring durability in harsh marine conditions.
Q4: What is the maximum load capacity of this windlass?
A: The motor power ranges from 15kW to 120kW, supporting rated loads up to 120 tons for heavy-duty applications.
Q5: Does the windlass come with a warranty?
A: Yes, we provide a 1-year warranty against manufacturing defects, with extended warranty options available upon request.
Q6: How is the windlass powered onboard?
A: The electric windlass can be configured to work with AC or DC power systems, depending on your vessel’s electrical setup.
Q7: Can this windlass be used for emergency anchoring?
A: Yes, it features emergency positioning control, allowing secure anchoring during critical situations.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
