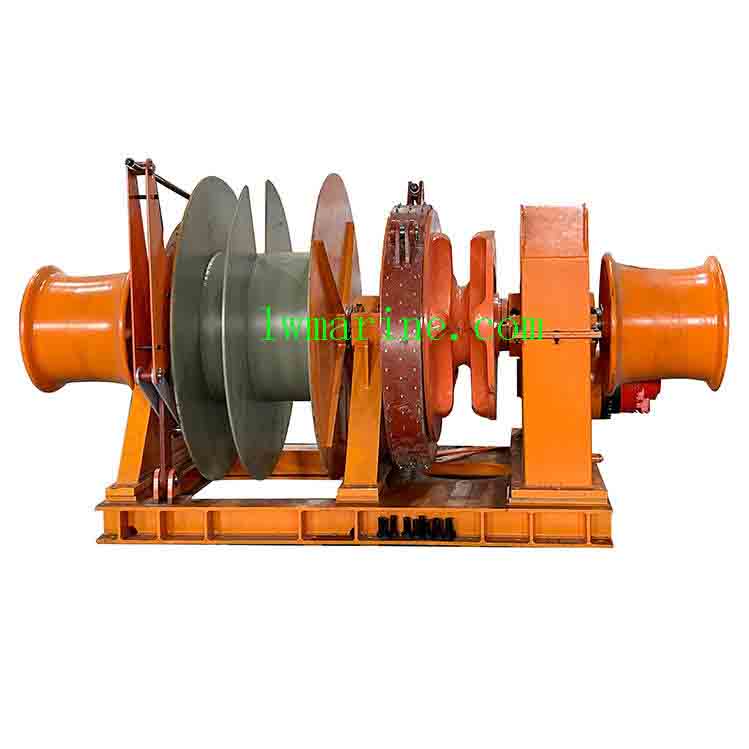

20.5mm Electric Anchor Windlass Double Gypsys
The 20.5mm Electric Anchor Windlass Double Gypsys is a professional marine anchoring system designed for vessels requiring dual-chain redundancy and reliable performance.
Primary Applications:
-
Coastal patrol boats
-
Offshore supply vessels
-
Medium-sized cargo ships
-
Fishing vessels
Key Features:
✔ Dual Ø20.5mm gypsy wheels – Handles two anchor chains simultaneously
✔ Closed gearbox (IP56) – Superior protection against seawater ingress
✔ Manual brake/clutch – Immediate operational control
✔ High-torque electric drive (7.5-15kW)
Advantages & Features
-
Dual-Chain Capability
-
Independent operation of each gypsy
-
Continuous duty rating
-
-
Operational Control
-
Local control station (IP56 rated)
-
Optional bridge remote control
-
-
Maintenance Optimized
-
Centralized lubrication system
-
Quick-access service panels
-
-
Safety Systems
-
Fail-safe manual brake
-
Overload protection
-
-
Certifications
-
IRS, RINA, LR
-
SOLAS compliant
-
| Specifications | |
| Chain diameter(AM2) | 20.5mm |
| Cable diameter | 20mm |
| Capacity | ≥150m |
| Power | 8/3.5KW |
| Speed | 1370/390r/min |
| Voltage | 415v / 50Hz |
| Working load | 17.9KN |
| Overload | 26.9KN |
| Support load | 150KN |
| Speed | ≥9m/min |
| Drum load | 35KN |
| Drum speed | ≥7m/min |
| Support load | 105KN |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
