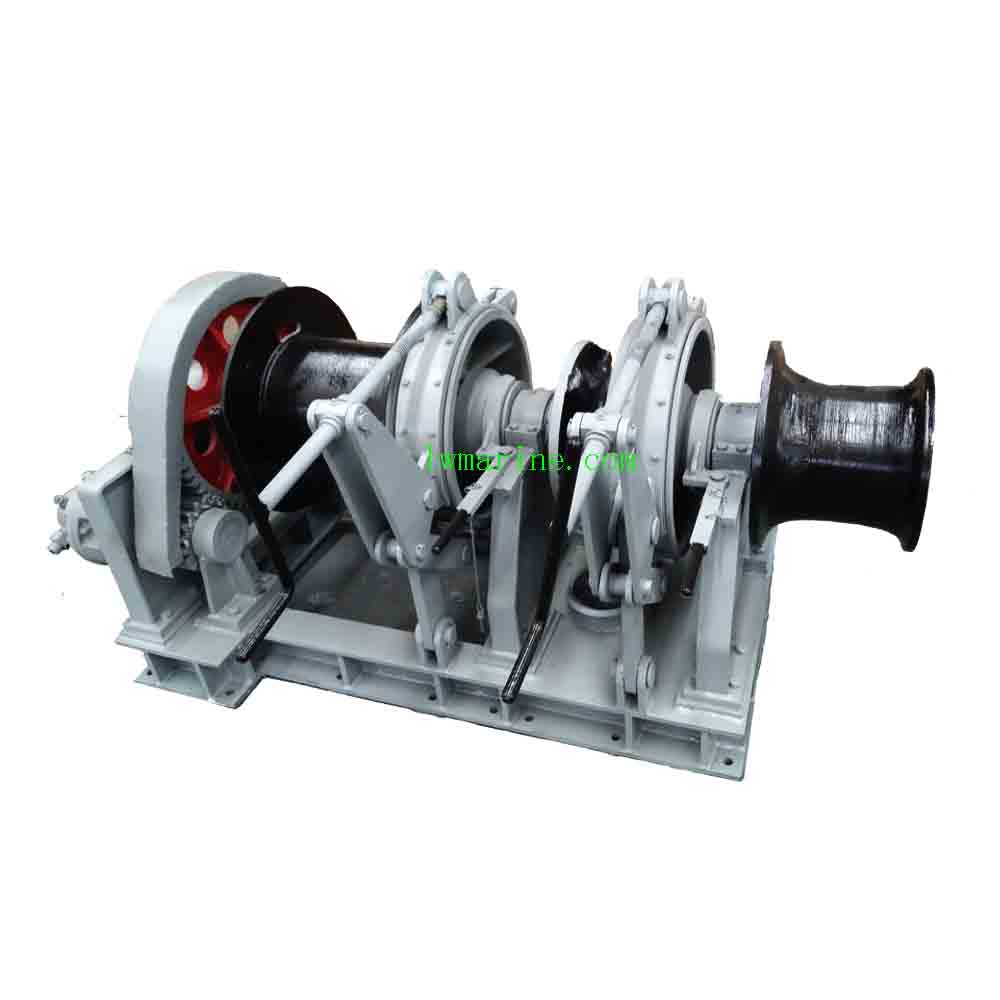

Marine Anchor Windlass
A Marine Anchor Windlass is a pivotal piece of marine equipment designed for the efficient hoisting and lowering of anchors on various types of vessels, ranging from small boats to large ships. This critical component of the ship’s anchoring system provides the necessary force to deploy or retrieve the anchor, ensuring secure mooring in diverse marine environments. Typically positioned on the foredeck, the windlass can be powered by an electric motor, a hydraulic system, or a diesel engine, depending on the vessel’s size, the weight of the anchor and chain, and the specific anchoring system in use.
Customized Marine Anchor Windlass Solutions
Our marine windlasses are tailored to meet the unique needs of each vessel, considering factors such as application, working conditions, and operational requirements. Constructed from high-quality materials like cast steel and 316L stainless steel, these windlasses are built to withstand the harsh marine environment. From the initial design phase to final dispatch, our internal quality assurance systems adhere strictly to marine class standards. Additionally, third-party surveyors conduct thorough inspections throughout the design and fabrication process to ensure compliance with all relevant specifications and industry standards.
For detailed marine anchor windlass specifications and customization options, please explore our product catalog.
Key Features of Our Marine Anchor Windlasses
- Multiple Drive Options: Electric, hydraulic, and diesel engine drives available.
- Wide Working Load Range: From 1T to 100T, catering to various vessel sizes.
- Versatile Chain Specifications: Chain diameters from 12.5mm to 160mm, with grades ranging from AM2 to AM3.
- Easy Maintenance: Designed for straightforward lubrication, inspection, and upkeep.
- Robust Construction: High-strength materials and efficient gearbox for optimal performance.
- Customizable Design: Tailored to meet specific customer applications and operating conditions.
- Flexible Configuration: Options with or without warping heads and drums.
- Control Options: Local or remote control for enhanced operational flexibility.
- Clutch and Brake Systems: Manual or hydraulic clutch and brake mechanisms.
- Motor Variants: General or explosion-proof motors for diverse safety requirements.
- Advanced Control Features: Auto tension control, chain length, and speed measurement capabilities.
- Certifications: Compliant with BV, LR, RINA, and other international standards.
Marine Anchor Windlass Classification
Our marine anchor windlasses are categorized into three main types based on their power source:
- Marine Electric Anchor Windlasses: Ideal for vessels requiring quiet operation and precise control.
- Marine Hydraulic Anchor Windlasses: Suited for heavy-duty applications where high torque is essential.
- Marine Diesel Engine Anchor Windlasses: Perfect for vessels operating in remote areas without access to electrical power.
Main Technical Specifications (Sample)
| Chain Dia. (mm) | Working Load (KN) | Supporting Load (KN) | Working Speed (m/min) | Mooring Load (KN) | Motor Power (kW) |
|---|---|---|---|---|---|
| 12.5 | 5.9 | 30 | ≥9 | 5 | 3/1.2 |
| … | … | … | … | … | … |
| 112/114 | 595.8/617.3 | 4109/4228 | ≥9 | 350 | 200 |
Note: Above specifications are for reference only. We can supply various marine windlasses according to your specific requirements.
Installation Guide for Marine Anchor Windlass
Installing a marine anchor windlass requires trained professionals with experience in marine equipment installation. Here are the general steps involved:
- Choose a Suitable Location: Select a location based on vessel size, deck layout, and weight distribution.
- Prepare the Installation Site: Clear any obstacles or debris that may interfere with the installation.
- Mount the Windlass: Securely mount the windlass using bolts and brackets designed for the specific model and vessel.
- Connect the Power Source: Depending on the windlass type, connect it to an electric motor or hydraulic system using appropriate wiring and connectors.
- Attach the Anchor Chain/Rope: Connect the anchor chain or rope using suitable shackles and connectors, ensuring proper tension.
- Test the Windlass: Deploy and retrieve the anchor to verify the windlass can handle the weight and load.
- Secure Loose Equipment: Fasten any loose wires or hoses to prevent interference or safety hazards.
Always follow the manufacturer’s installation instructions and relevant safety regulations. Professional installation and regular maintenance ensure safe and reliable operation over the windlass’s lifespan.
FAQs about Marine Anchor Windlass
Q1: What factors should be considered when selecting a marine anchor windlass?
A1: When choosing a marine anchor windlass, consider the vessel’s size, the weight of the anchor and chain, the type of anchoring system, and the specific operational requirements.
Q2: How often should a marine anchor windlass be maintained?
A2: Regular maintenance is crucial for the longevity and reliable performance of a marine anchor windlass. It’s recommended to follow the manufacturer’s maintenance schedule, which typically includes lubrication, inspection, and cleaning at regular intervals.
Q3: Can a marine anchor windlass be customized to meet specific requirements?
A3: Yes, our marine anchor windlasses can be customized to meet specific customer applications and operating conditions. We offer a range of options, including different drive types, chain specifications, and control features.
Q4: What certifications do your marine anchor windlasses comply with?
A4: Our marine anchor windlasses comply with various international standards, including BV, LR, RINA, and others, ensuring they meet the highest quality and safety requirements.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
