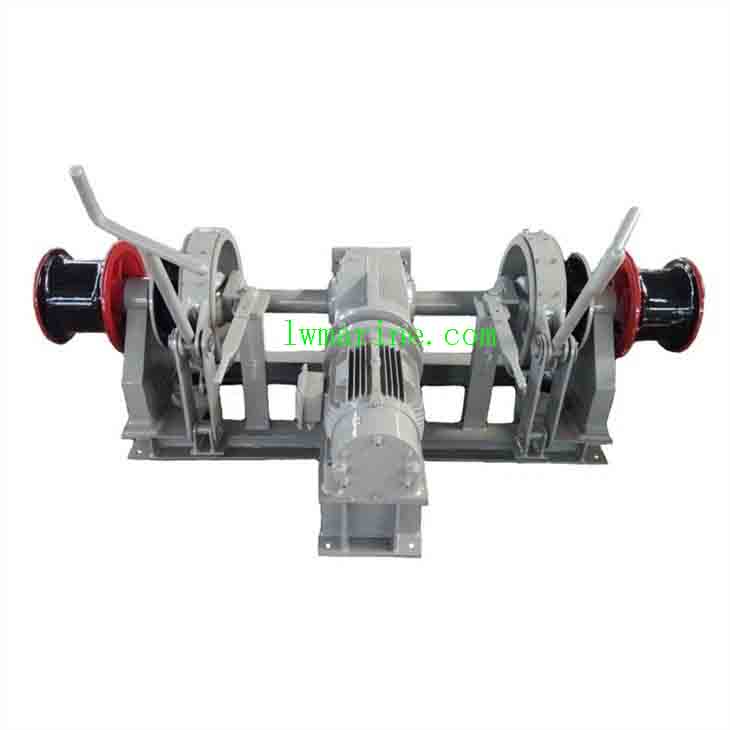

Electric Double Gypsy Anchor Winch: The Ultimate Marine Anchoring Solution
When it comes to securing your vessel, our electric double gypsy anchor winch stands out as a top-tier choice. Designed to handle a wide range of anchor applications, our line of anchor windlasses offers diverse styles and sizes to meet your specific needs. Whether you’re dealing with small boats or large ships, our anchor winches are engineered to handle chains up to 160mm in diameter, with a variety of drive options available to suit your preferences.
Key Features:
- Robust Construction: Fabricated from high-quality steel, our anchor windlass winches are built to last, even in the harshest marine environments.
- Hardened Gears: The gears are hardened to exceed working load requirements, ensuring smooth and reliable operation under heavy loads.
- Clutched and Braked Drum: The drum is equipped with both a clutch and a brake, providing precise control and safety during operation.
- Corrosion Resistance: Designed to withstand the corrosive effects of saltwater, our anchor winches are ideal for long-term marine use.
- Flexible Drive Options: Choose between electric or hydraulic drives, and even add warping heads for enhanced functionality.
- Customizable Design: We can modify our windlasses to suit your specific application and operational requirements, ensuring a perfect fit for your vessel.
Advanced Design Elements:
Our anchor windlass winches feature a rugged design with heavy-duty split bronze bearings and amply dimensioned brakes. The operating mechanism for the brake and clutch is designed for easy and safe manual operation, but can also be remotely operated by hydraulic cylinders for added convenience. The brakes are easily adjustable, ensuring precise control over the winching process. All external forces are transferred to the deck construction via foundation bolts, ensuring stability and safety. The winch design provides easy access to all points for lubrication and inspections, facilitating maintenance and prolonging the lifespan of the equipment.
Main Technical Specifications:
| Chain Dia.(mm) | Working Load(kN) | Supporting Load(kN) | Working Speed(m/min) | Warping Load(kN) | Motor Power(kW) |
|---|---|---|---|---|---|
| 12.5 | 5.9 | 30 | ≥9 | 5 | 3/1.2 |
| 14/16/17.5 | 8.3/10.9/13.0 | 51/67/80 | ≥9 | 8 | 4.3/1.7 |
| 19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 10 | 8.5/3.5 |
| 24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 | 8.5/3.5 |
| 28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 | 11/11/7.5 |
| 32/34/36 | 43.5/49.1/55.1 | 261/294/329 | ≥9 | 30 | 16/16/11 |
| 38/40/42 | 61.4/68.0/75.0 | 365/402/442 | ≥9 | 40 | 22/22/16 |
| 44/46/48 | 82.3/89.9/97.9 | 483/526/570 | ≥9 | 50 | 30/30/22 |
| 50/52/54 | 106.3/114.9/123.9 | 617/664/713 | ≥9 | 50 | 30/30/22 |
| 56/58/60 | 133.3/143.0/153 | 764/816/870 | ≥9 | 60 | 45/45/30 |
| 62/64 | 163.4/174.1 | 925/982 | ≥9 | 80 | 45/45/30 |
| 66/68 | 185.1/196.5 | 1040/1098 | ≥9 | 100 | 45/45/30 |
| 70/73 | 208.3/226.5 | 1160/1254 | ≥9 | 100 | 60/60/45 |
| 76/78 | 245.5/258.6 | 1350/1416 | ≥9 | 125 | 60/60/45 |
| 81/84 | 311.7/335.2 | 2171/2320 | ≥9 | 140 | 75/75/36 |
| 87/90 | 359.5/384.8 | 2473/2629 | ≥9 | 150 | 75/75/36 |
| 92/95 | 402.0/428.7 | 2735/2898 | ≥9 | 200 | 85/85/64 |
| 97/100 | 446.9/475.0 | 2995/3162 | ≥9 | 250 | 100/100/50 |
| 105/107 | 523.7/543.8 | 3612/3750 | ≥9 | 300 | 110/110/55 |
| 112/114 | 595.8/617.3 | 4109/4228 | ≥9 | 350 | 132/132/66 |
FAQs:
- Q: What types of vessels are suitable for using an electric double gypsy anchor winch?
- A: Our electric double gypsy anchor winches are suitable for a wide range of vessels, from small boats to large ships, providing reliable anchoring solutions for various marine applications.
- Q: Can the anchor winch handle different chain sizes?
- A: Yes, our anchor winches are designed to handle chains up to 160mm in diameter, with multiple sizes available to suit your specific needs.
- Q: What are the advantages of choosing an electric drive over a hydraulic drive for the anchor winch?
- A: Electric drives offer ease of installation and operation, while hydraulic drives provide more power and are suitable for heavier loads. The choice depends on your specific requirements and preferences.
- Q: How can I ensure the longevity of my anchor winch?
- A: Regular maintenance, including lubrication and inspections, is crucial for prolonging the lifespan of your anchor winch. Our design provides easy access to all points for these tasks.
- Q: Can the anchor winch be customized to fit my vessel’s specific requirements?
- A: Absolutely! We offer customization options to modify our windlasses to suit your application and operational requirements, ensuring a perfect fit for your vessel.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
