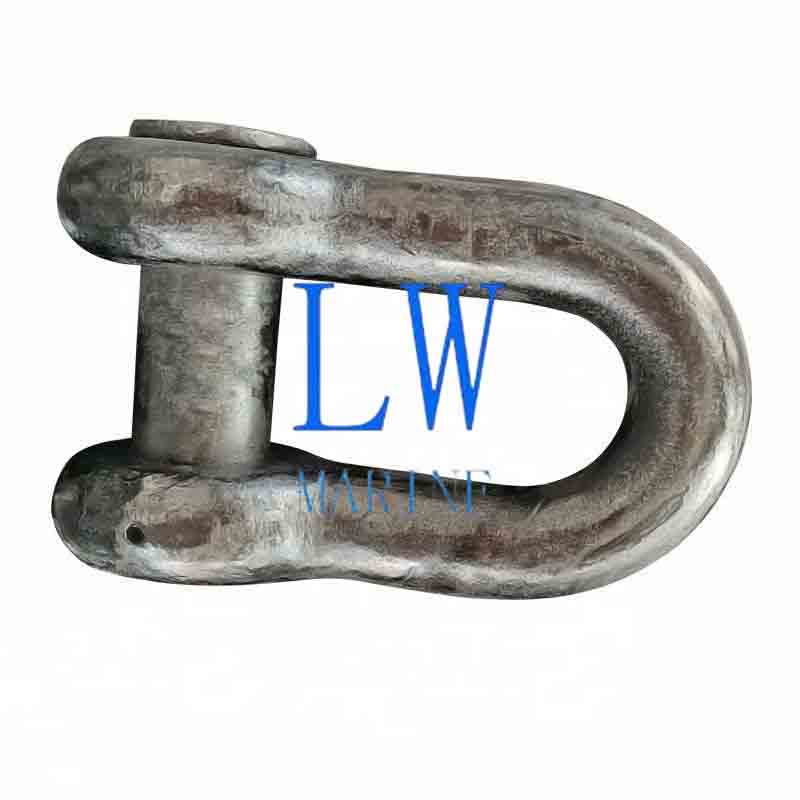

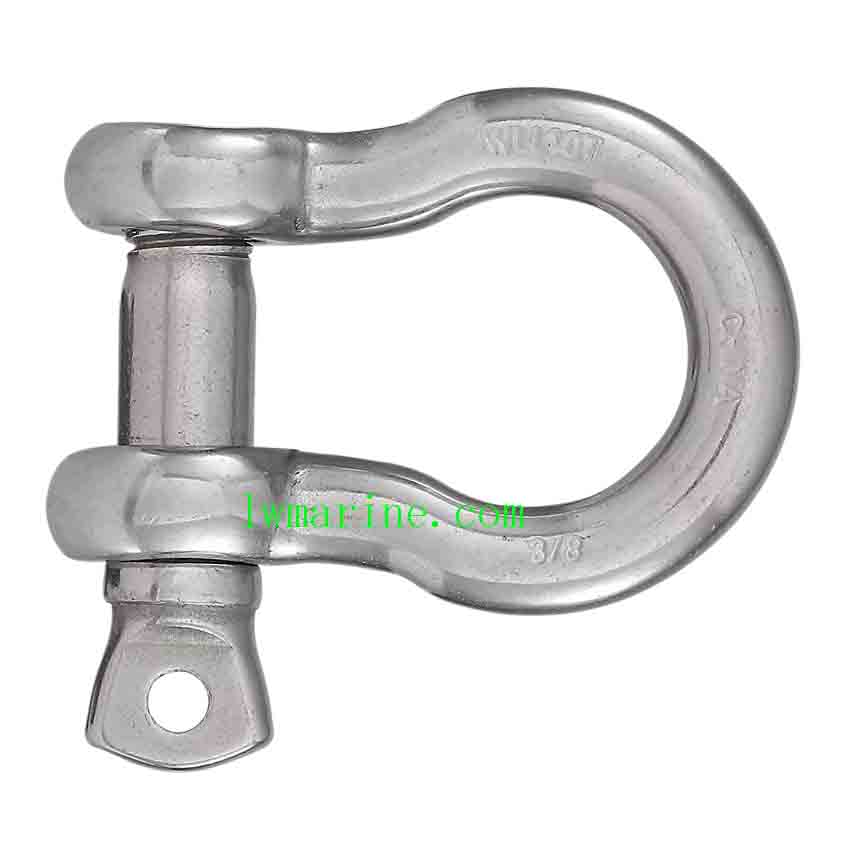

Marine Anchor Shackle
Elevate the safety and performance standards of your marine mooring systems to new heights with our top – of – the – line heavy – duty Anchor Shackle. Meticulously engineered with an unwavering focus on reliability, these forged shackles serve as the vital link between your anchor and anchor chain. They are perfectly suited for deployment on both the port and starboard sides of a wide variety of vessels, ensuring a secure and stable mooring connection.
As a well – established and trusted supplier hailing from China, we are committed to delivering robust lifting and mooring solutions that meet the most stringent international standards. Our products are certified by leading marine classification societies, including ABS (American Bureau of Shipping), BV (Bureau Veritas), and LR (Lloyd’s Register). These certifications are readily available upon your request, providing you with the assurance that our anchor shackles fully comply with your specific project requirements.
Technical Specifications & Outstanding Features
- Material Grade: We offer high – tensile Grade 2 or Grade 3 Shackles, carefully selected to cater to a diverse range of strength requirements. Whether you need a shackle for light – duty or heavy – duty applications, our products have you covered.
- Size Range: Our inventory is comprehensive, featuring a wide selection of chain diameters from 12.5mm (1/2″) to 162mm (6 3/8″). This extensive range ensures that you can find the perfect – fitting anchor shackle for your unique application, eliminating the need for compromises.
- Types Available: We supply a full spectrum of marine shackles to meet all your mooring and lifting needs. Our range includes Kenter Shackles, Joining Shackles, Anchor Shackles, Swivels, and Swivel Shackles. Each type is designed with specific functions in mind, providing you with the flexibility to choose the most suitable option for your project.
- Design: Our anchor shackles are constructed using a forging process, which imparts superior strength and excellent impact resistance. This robust design ensures that our shackles can withstand the harsh conditions and extreme forces encountered in marine environments, providing long – lasting performance.
Detailed Weight Chart for Marine Shackles (Selection)
| Chain Diameter | Kenter Shackle (kg) | Joining Shackle (kg) | Anchor Shackle (kg) | Swivel (kg) | Swivel Shackle Type A (kg) | Swivel Shackle Type B (kg) |
|---|---|---|---|---|---|---|
| 3/4 inch (19mm) | 1.1 | 1.8 | 2.4 | 2.1 | 5.5 | – |
| 1 inch (25.5mm) | 2.5 | 4.5 | 6.7 | 5.7 | 14.2 | 12.5 |
| 1.5 inch (38mm) | 8.4 | 13.4 | 19.5 | 17.4 | 42.6 | 39.4 |
| 2 inch (51mm) | 20.3 | 34 | 50.9 | 49.5 | 117.2 | 101 |
| 3 inch (76mm) | 60.7 | 107 | 146 | 143.8 | 347.8 | 314 |
| 4 inch (101.5mm) | 158 | 267 | 378 | 344 | 835.5 | 761 |
| 6 inch (152.5mm) | 537 | 856 | 1164 | 1238 | 2839 | – |
For the complete and detailed shackle weight table, please don’t hesitate to contact us.
Global Shipping & Unwavering Reliable Service
We take great pride in our fast delivery and reliable worldwide shipping services. We understand the critical importance of timely delivery in the global maritime industry, shipbuilding sector, and offshore construction projects. Our efficient logistics network is specifically tailored to meet the urgent needs of these industries, ensuring that your anchor shackles and other marine hardware arrive at your doorstep on time, no matter where you are in the world. With our commitment to quality and service, you can trust us to be your reliable partner for all your marine mooring requirements.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
