Anchor Chain Stopper

Anchor Chain Stopper

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15-30 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

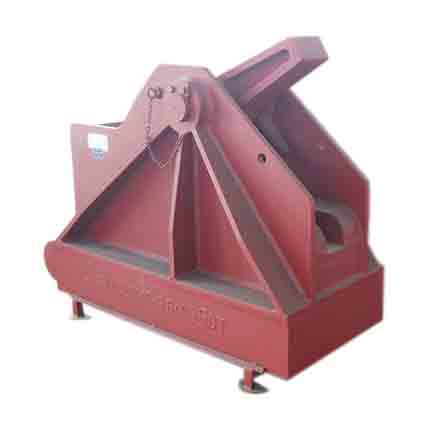

Cast Steel Offshore Chain Stopper for Anchor Chain Security

Introducing our top-tier Cast Steel Offshore Chain Anchor Chain Stopper, a robust and reliable mooring device specifically engineered to clamp anchor chains securely and prevent sliding. Crafted from high-quality cast steel (ASTM A352 GrLcc), this essential marine equipment is designed to withstand the rigorous demands of all types of oil tankers, chemical tankers, and liquefied gas carriers.

Key Features of Cast Steel Offshore Chain Stopper:

  1. Material: Made from superior cast steel (ASTM A352 GrLcc) for exceptional strength and durability.
  2. Application: Ideal for use on oil tankers, chemical tankers, and liquefied gas carriers, ensuring safe and secure mooring.
  3. Function: Acts as a mooring device that effectively clamps anchor chains, preventing any unwanted sliding or movement.
  4. Color Options: Available in black, white, red, or any other color as per customer requirements.
  5. Customizable Size: Tailored to fit specific customer needs, ensuring a perfect fit for any anchor chain system.
  6. Durable and Long-Lasting: Built to endure the harsh marine environment, providing reliable performance for an extended service life.
  7. Competitive Pricing: Offers excellent value for money without compromising on quality or functionality.
  8. Customized Product Service: We provide bespoke solutions to meet unique customer requirements.
  9. Strict Quality Control System: Ensures every product meets the highest standards of quality and reliability.
  10. Excellent Customer Service: Committed to providing exceptional service and support throughout the purchasing process and beyond.
  11. One-Year Warranty: Provides peace of mind with a comprehensive one-year warranty against manufacturing defects.
  12. Certifications: Holds CCS certification, ensuring compliance with international safety standards.
  13. Payment Terms: Accepts flexible payment terms including L/C and T/T for your convenience.

Additional Marine Chain Stoppers Available:

We also offer a diverse range of other marine chain stoppers to cater to various applications, including:

  • JIS F2002 Bar Type Chain Stopper
  • JIS F2033 Roller Bar Type Chain Stopper
  • JIS F2023 Cast Bar Type Chain Stopper
  • JIS F2032 Roller Pawl Type Chain Stopper
  • CB T3844-2000 Chain Stopper
  • CB 286-84 Bar Type Chain Stopper
  • GB T178-96 Spiral Type Chain Stopper
  • JIS F2031 Pawl Type Chain Stopper
  • JIS F2016 Pawl Type Chain Stopper
  • JIS F2015 Cast Steel Chain Stopper
  • CB T3822-99 Adjustable Chain Stopper
  • OCIMF Type Chain Stopper

China JIS F2015-1987 Cast Steel Bar Type Chain Stopper Details:

When a vessel is moored, the chain stopper transfers the pull strength of the anchor and chain to the vessel, reducing the working load and protecting the anchor windlass. During sailing, it withstands the anchor’s weight and inertial force.

  • Process: Casting, forging, and welding for superior strength and durability.
  • Finish: Treated with anti-rust paint to enhance corrosion resistance.
  • Load Capacity: Withstands up to 80% of the chain cable’s breaking load.

Size Chart:

Chain Dia.(mm) Dimensions (mm) – B Dimensions (mm) – H Dimensions (mm) – H2 Dimensions (mm) – L Dimensions (mm) – h Dimensions (mm) – B2 Weight (KG)
38-40 336 378 130 540 68 65 110
42-44 366 412 142 590 75 72 138
46-48 397 450 155 640 82 78 177
50-52 428 491 170 695 88 85 214
54-56 457 528 182 745 95 92 261
58-60 488 465 195 795 102 98 319
62-64 517 600 208 850 109 104 396
66-68 547 635 220 900 116 110 428
70-73 582 675 233 960 125 117 609
76-78 617 715 245 1020 133 123 740

Note: Sizes 62mm to 78mm require counter-weights. The bar can be opened on either the right or left-hand side for added convenience.

Frequently Asked Questions (FAQs):

  1. What is the primary function of a cast steel offshore chain stopper?
    • The primary function is to securely clamp anchor chains, preventing sliding and ensuring safe mooring of the vessel.
  2. What types of vessels can use this chain stopper?
    • This chain stopper is suitable for use on oil tankers, chemical tankers, and liquefied gas carriers.
  3. Can the chain stopper be customized to fit specific requirements?
    • Yes, the chain stopper can be customized in terms of size, color, and other specifications to meet unique customer needs.
  4. What certifications does the chain stopper hold?
    • The chain stopper holds CCS certification, ensuring compliance with international safety standards.
  5. How does the chain stopper protect the anchor windlass?
    • By transferring the pull strength of the anchor and chain to the vessel, the chain stopper reduces the working load on the anchor windlass, protecting it from damage.

Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
