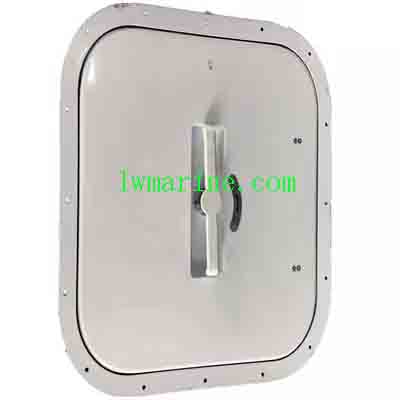

Aluminum Marine – Grade Rapid Opening & Closing Watertight Hatch Cover
Our Aluminum Marine – Grade Watertight Hatch Cover is a top – notch product meticulously crafted for marine and industrial settings where a highly secure and watertight seal is absolutely essential. This specific model is equipped with a rapid – opening and closing mechanism, which is a game – changer in terms of operational efficiency. Whether it’s for regular maintenance tasks, the loading and unloading of cargo, or handling emergency situations on ships or industrial facilities, the swift action of this hatch cover allows for quick access while still maintaining an exceptional level of water – tightness. It is an ideal choice for marine vessel hatches, industrial hatch covers for waterproofing, and any application where a reliable seal is required.
Key Features and Benefits
- High – Quality Aluminum Construction for Long – Lasting Performance: Crafted from premium – grade aluminum, this hatch cover offers a perfect combination of light weight and high durability. Aluminum is well – known for its outstanding corrosion resistance, making it an excellent material for use in harsh marine environments. With constant exposure to saltwater and other corrosive elements, this hatch cover can withstand the test of time, ensuring a long service life. This, in turn, reduces the frequency of replacements and significantly cuts down on maintenance costs, making it a cost – effective solution for marine and industrial applications.
- Rapid Opening and Closing Functionality for Time – Sensitive Operations: The innovative design of this hatch cover enables it to be opened and closed in a flash. This feature is extremely beneficial in time – critical operations such as cargo handling at ports or during emergencies on ships. The ease of operation also minimizes the physical strain on operators, leading to improved overall work efficiency. It is a must – have for marine vessel emergency hatches and industrial facilities where quick access is vital.
- Effective Watertight Seal for Comprehensive Protection: Once closed, the hatch cover forms a tight and reliable seal that effectively prevents the ingress of water. This is of utmost importance for safeguarding the interior of vessels or industrial facilities from water damage. Water damage can result in costly repairs and extended downtime, which can disrupt operations and lead to significant financial losses. Additionally, the watertight feature helps in maintaining the stability and safety of the structure, ensuring smooth and safe operations.
Technical Parameters
| Product NO | δ (mm) | δ0 (mm) | H (mm) | Clear Size of Opening | A1*B1 (mm) | A2*B2 (mm) |
|---|---|---|---|---|---|---|
| MOUA030 – AW001 | 3 | 4 | 50 | 500×500; 600×600 | 532×532; 632×632 | 588×588; 688×688 |
| MOUA030 – AW002 | 3 | 4 | 50 | 450×600; 650×800 | 482×632; 686×836 | 538×688; 738×888 |
| MOUA030 – AW003 | 3 | 4 | 50 | 350×500; 450×600 | 382×532; 482×632 | 438×588; 538×688 |
| MOUA030 – AW004 | 3 | 2.5 | 27 | D600 | D636 | D636 |
Application
This marine watertight hatch cover is mainly used in the main passageways of ship cabins or decks where a flush installation is required. Its key advantages include light weight, excellent watertightness, and flexible opening, making it suitable for a wide range of marine and industrial scenarios.
Product Description
| Type | Name | Architectural Feature | Size | Hinge Position |
|---|---|---|---|---|
| A | Single – side Open and Close Weathertight Hatch Cover | Wing nut clip | 450×630, 830×830, 530×530, 830×1230, 630×630, 1030×1030, 630×830, 1330×1330 | A, AL, AS |
| B | Double – side Open and Close Weathertight Hatch Cover | Wedge handle clip | 450×630, 830×830, 530×530, 830×1230, 630×630, 630×630 | B, BL, BS |
| C | Quick Opening & Closing Hatch Cover | Center swivel handle clip | 530×530, 630×630 | – |
| D | Insert Weathertight Hatch Cover for Opening and Closing | Retractable wedge handle clip | 530×530, 630×830, 630×630, 830×830 | D, DL, DS |
| E | Single – side Open and Close Weather Tight Hatch Cover | Wing nut clip | 530×530, 830×830, 630×630 | E, EL, ES |
| F | Single – side Open and Close Weather Tight Hatch Cover | Wedge handle clip | 530×530, 830×830, 630×630 | F, FL, FS |
FAQs
- What is the maximum pressure that this aluminum watertight hatch cover can withstand?
Our aluminum watertight hatch cover is designed to withstand normal marine and industrial operating pressures. However, the specific maximum pressure it can endure depends on factors such as the model, size, and installation method. For detailed information, please refer to our product technical specifications or contact our customer service team. - How often should I perform maintenance on this hatch cover?
Regular maintenance is crucial to ensure the long – term performance of the hatch cover. We recommend conducting a visual inspection at least once a month to check for any signs of damage, corrosion, or loose components. Additionally, a more comprehensive maintenance check, including lubrication of moving parts and testing of the watertight seal, should be carried out every six months or as per the manufacturer’s guidelines. - Is this hatch cover suitable for use in extremely cold environments?
Our aluminum watertight hatch cover is designed to perform well in a wide range of temperatures. However, in extremely cold environments, the material may become more brittle, which could affect its durability and performance. We recommend taking additional precautions, such as using appropriate insulation or heating methods, if the hatch cover will be exposed to very low temperatures for an extended period. - What is the warranty period for this product?
We offer a standard warranty period of [X] years for our aluminum watertight hatch covers. This warranty covers any manufacturing defects or malfunctions that may occur during normal use. For more information about our warranty policy, please refer to our warranty document or contact our customer service team.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
