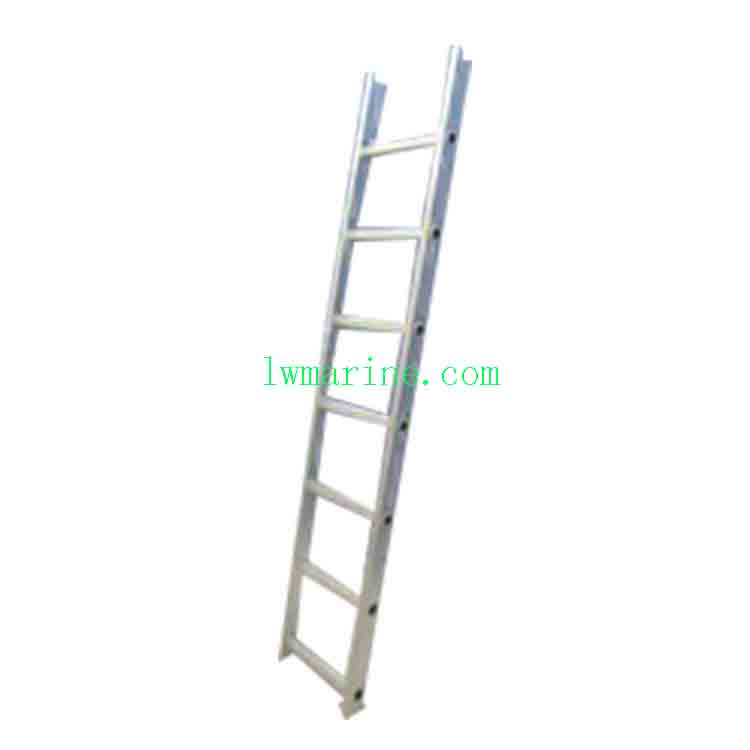

Marine-Grade Aluminum Pipe Vertical Ladder – Lightweight & Corrosion-Resistant
Product Overview
Our marine aluminum pipe vertical ladder provides safe and durable access solutions for ship tanks and void spaces. Constructed from marine-grade aluminum alloy, these lightweight yet sturdy ladders feature a simple yet effective design consisting of a ladder frame and steps, making them ideal for vertical access in confined shipboard spaces.
Key Features & Benefits
✔ Lightweight Aluminum Construction
-
50% lighter than steel alternatives
-
Superior corrosion resistance in marine environments
-
Low maintenance requirements
✔ Optimized Design
-
Clean, simple design for easy installation
-
Non-slip step surfaces
-
Smooth rounded edges for safety
✔ Custom Configurations
-
Steps: 2 to 12 steps available
-
Height: 800mm to 4000mm
-
Deck Height: Customizable to ship specifications
-
Tube Thickness: 6mm or 8mm options
✔ Global Certifications Available
CCS | NK | BV | RINA | DNV.GL | LR | ABS
Technical Specifications
| Steps | Deck Height (mm) | L (mm) | H (mm) | t (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 2 | 800-1000 | 600 | 150 | 6 | 3.65-3.73 |
| 2 | 900-1000 | 800 | 250 | 6 | 4.07-4.15 |
| 3 | 1150-1300 | 1000 | 200 | 6 | 4.71-4.83 |
| 4 | 1400-1600 | 1200 | 150 | 6 | 5.34-5.5 |
| 4 | 1500-1600 | 1400 | 250 | 6 | 5.76-5.92 |
| 5 | 1750-1900 | 1600 | 200 | 6 | 6.4-6.6 |
| 6 | 2000-2200 | 1800 | 150 | 6 | 7.03-7.27 |
| 6 | 2100-2200 | 2000 | 250 | 6 | 7.43-7.7 |
| 7 | 2350-2500 | 2200 | 200 | 8 | 8.43-8.71 |
| 8 | 2600-2800 | 2400 | 150 | 8 | 9.06-9.38 |
| 8 | 2700-2800 | 2600 | 250 | 8 | 9.85-10.17 |
| 9 | 2950-3100 | 2800 | 200 | 8 | 10.48-10.84 |
| 10 | 3200-3400 | 3000 | 150 | 8 | 11.11-11.51 |
| 10 | 3300-3400 | 3200 | 250 | 8 | 11.54-11.94 |
| 11 | 3550-3700 | 3400 | 200 | 8 | 12.17-12.61 |
| 12 | 3800-4000 | 3600 | 150 | 8 | 12.8-13.28 |
The description/sizes may be different with goods, please check with us when order.
