ALUMINIUM WEATHERTIGHT DOOR
This product is applicable to various ship and warship cabins, with the door surface undergoing anodizing, baking – finish, or PVC – covering treatments.
USED FOR CABIN OF VARIOUS KINDS OF SHIP AND WAR SHIPS. THE DOOR SURFACE WILL BE ANODIZED, BAKING FINISHED OR PVC COVERED.

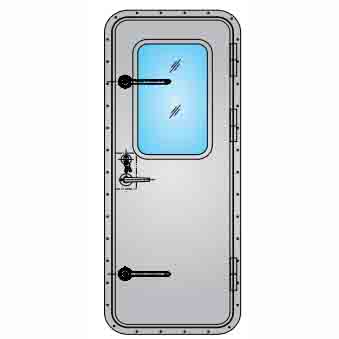

[Three diagrams:
- Front – view of the aluminium weathertight door, showing a rectangular door with a window in the upper – left corner, labeled with dimensions B×H×R100.
- Side – view of the door, illustrating its cross – section with details of the structure and dimensions B1×H1×R135, B2×H2×R157.
- A detailed cross – sectional view highlighting the internal structure and sealing mechanism of the door.]
Table of Specifications
| Nominal Size B×H×R | Opening of Casing Wall B1×H1×R135 | Size of Frame B2×H2×R157 | Weight (KG) |
|---|---|---|---|
| 500×1000×R100 | 570×1070×R135 | 614×1114×R157 | 28.6 |
| 500×1200×R100 | 570×1470×R135 | 614×1514×R157 | 28.3 |
| 500×1400×R100 | 570×1470×R135 | 614×1514×R157 | 37.0 |
| 600×1200×R100 | 670×1270×R135 | 714×1314×R157 | 45.6 |
| 600×1400×R100 | 670×1470×R135 | 714×1514×R157 | 51.2 |
| 600×1600×R100 | 670×1670×R135 | 714×1714×R157 | 62.9 |
Marking Example:
For an aluminium weathertight door with a nominal size of 500×1000, D (R value) of 100, left – outer opening, and a door frame made of specified material: Aluminium Weathertight Door 500X100 – 150LO JY001 – 015.
