ALUMINIUM SUNK WATERTIGHT HATCH COVER
CB958-80
263.YHS-007
PRODUCT DESCRIPTION
USED IN MAIN PASSAGE WAY OF SHIP CABIN OR DECK WHERE THE FLUSH IS NEEDED. ITS ADVANTAGE IS WEIGHT LIGHT, GOOD WATERTIGHTNESS AND FLEXIBLE-OPENING.

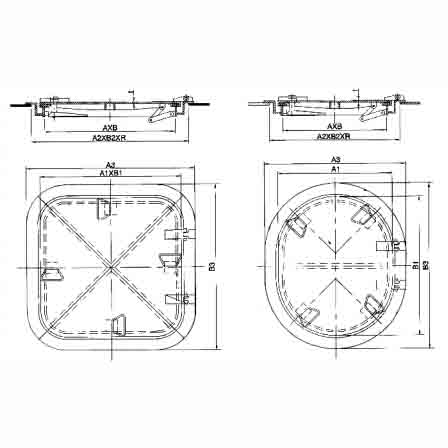

TYPE CLASSIFICATION
- TYPE A SQUARE SUNK WATERTIGHT HATCH COVER
- TYPE B ELLIPTIC SUNK WATERTIGHT HATCH COVER
TECHNICAL DATA TABLE
| TYPE | ACCESS WAY SIZE
A×B |
SIZE OF COVER
A1×B1 |
SIZE OF OPENING
A2×B2×R |
EXTERNAL SIZE
A3×B3 |
t | WEIGHT
KG |
|---|---|---|---|---|---|---|
| A | 500×500 | 536×536 | 560×560×130 | 646×646 | 4 | 22.4 |
| A | 600×600 | 636×636 | 680×680×140 | 746×746 | 4 | 26.3 |
| B | 400×500 | 436×536 | 480×580 | 546×646 | 17.02 | |
| B | 450×600 | 486×632 | 530×680 | 596×746 | 21.06 |
MARKING EXAMPLE
AS INDICATION:
CLEAR OPENING SIZE 400×500mm, B TYPE ALUMINIUM EMBEDDED WATERTIGHT HATCH COVER
EMBEDDED HATCH COVER B400×500 CB958-80
Note: The description may be different with the product, please contact us for quotation.
