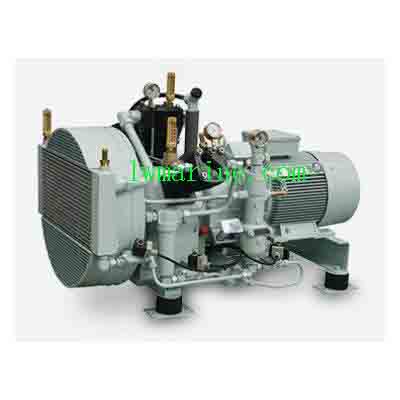

WP Series Air Compressors for Marine
The WP Series Marine Air Compressors are the epitome of reliable and efficient compressed air technology, specifically designed to meet the rigorous demands of shipboard operations. With advanced air-cooling systems and marine-grade construction, these compressors ensure exceptional performance even in the harshest ocean environments, providing a steady supply of clean, dry compressed air for various marine applications.
Key Features & Benefits
- Advanced Cooling System: Integrated intercooler and aftercooler effectively prevent overheating, enabling continuous operation without interruptions. This feature ensures optimal performance and extends the lifespan of the compressor.
- Marine-Optimized Construction: Utilizing cast iron and stainless steel components, these compressors are built to withstand saltwater corrosion, ensuring durability and reliability in marine settings.
- Built-in Moisture Control: A high-efficiency separator removes water and contaminants, delivering clean, dry air that meets the highest standards for marine equipment.
- Easy Maintenance Design: Quick-access components and an intuitive control panel simplify maintenance tasks, minimizing downtime and ensuring smooth operation.
- Energy Efficient Operation: Optimized motor systems reduce power consumption, making these compressors cost-effective and environmentally friendly.
Technical Specifications
WP Series Air Compressors
| Model | Capacity (m³/h) | Pressure (MPa) | Motor Power (kW) | Voltage (V) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| WP18L | 18 | 3.0 | 5.5 | 380 | 845×640×564 | 66 |
| WP25L | 24.5 | 3.0 | 7.5 | 380 | 870×640×632 | 67 |
| WP32L | 31.5 | 3.0 | 7.5 | 380 | 884×640×632 | 67 |
| WP250L | 225 | 3.0 | 55 | 380 | 1617×930×1085 | 924 |
| WP320 | 294 | 3.0 | 63 | 380 | 1975×951×1598 | 900 |
Marine Belt Drive Air Compressor: Main Technical Parameters
| Model No. | Type | Discharge Capacity (m³/h) | Discharge Pressure (kgf/cm²) | Speed (r/min) | Motor Power (kW) | Overall Size (L×W×H) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| KY22-003 | CZ-5/30FZK | 5 | 30 | 550 | 2.2 | 950×485×700 | 190 |
| KY16-013 | CZ-10/30FZK | 10 | 30 | 500 | 3 | 970×485×700 | 190 |
| KY16-020 | CZ-15/30FZK | 15 | 30 | 750 | 4 | 970×485×700 | 200 |
| KY16-005 | CZ-20/30FZK | 20 | 30 | 1000 | 5.5 | 970×485×700 | 210 |
| KY36-002 | CZ-25/30FZK | 25 | 30 | 1000 | 7.5 | 970×500×750 | 220 |
| KY21-014 | V-0.45/30A | 27 | 30 | 750 | 7.5 | 1180×700×890 | 300 |
| KY21-015 | V-0.5/30A | 30 | 30 | 800 | 7.5 | 1180×700×780 | 300 |
| KY21-011 | V-0.6/30A | 36 | 30 | 900 | 11 | 1230×750×800 | 320 |
| KY21-004 | V-0.7/30A | 42-45 | 30 | 1000 | 11 | 1230×630×780 | 320 |
| KY30-006 | CW-60/30F | 50-60 | 30 | 860 | 15 | 1320×750×850 | 450 |
FAQs
Q1: What makes the WP Series Marine Air Compressors suitable for shipboard operations?
A1: The WP Series Marine Air Compressors are engineered with advanced air-cooling systems and marine-grade construction, making them resistant to saltwater corrosion and capable of delivering exceptional performance in harsh ocean environments. Their built-in moisture control ensures clean, dry air for various marine applications.
Q2: How does the advanced cooling system benefit the compressor’s operation?
A2: The integrated intercooler and aftercooler prevent overheating, allowing for continuous operation without interruptions. This feature not only enhances performance but also extends the lifespan of the compressor by reducing wear and tear.
Q3: Are these compressors easy to maintain?
A3: Yes, the WP Series Marine Air Compressors are designed with quick-access components and an intuitive control panel, simplifying maintenance tasks and minimizing downtime. This ensures smooth and efficient operation throughout their service life.
Q4: What are the energy efficiency benefits of these compressors?
A4: The optimized motor systems in these compressors reduce power consumption, making them cost-effective and environmentally friendly. This energy efficiency translates to lower operating costs and a reduced carbon footprint.
Q5: Can the Marine Belt Drive Air Compressors be customized for specific applications?
A5: While the Marine Belt Drive Air Compressors come in a range of standard models, customization options may be available depending on the specific requirements of your application. It’s recommended to consult with our sales team to discuss your needs and explore potential customization solutions.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
