Marine Accommodation Ladders – Complete ISO 5488 Certified Boarding Solution
Premium Aluminum Gangway System for Safe Vessel Access

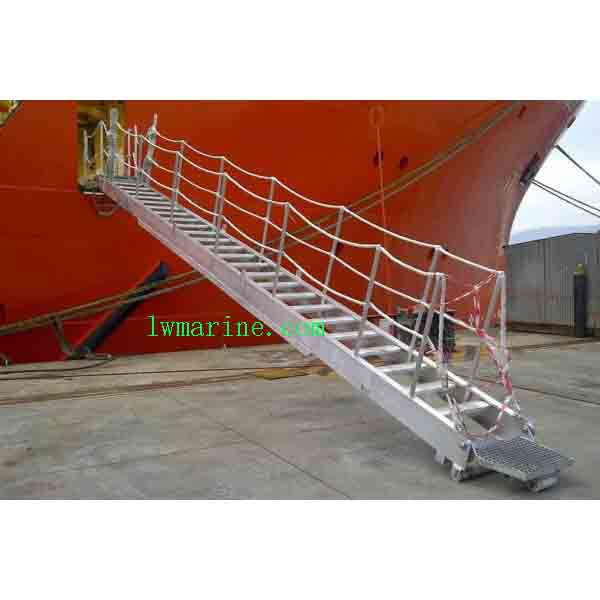

Product Overview
Our marine accommodation ladders provide safe and reliable boarding access for all vessel types. This fully integrated system features aluminum construction with steel platforms, foldable design for compact storage, and multiple winch options for effortless operation. Certified to ISO 5488-1979 & CB/T14360-93 standards, it’s the ideal solution for commercial and passenger vessels.
Key Features & Benefits
✔ Complete System Components
-
Aluminum ladder frame with anodized curved steps
-
Steel upper/lower platforms (turntable design)
-
Foldable aluminum/rope handrails
-
Integrated safety net
-
Choice of electric, pneumatic, or manual winches
-
Davit and post system
✔ Superior Engineering
-
0-55° adjustable angle range
-
Corrosion-resistant aluminum construction
-
Non-slip step surfaces
-
Compact foldable design (stores vertically on deck)
✔ Certification & Compliance
-
Meets ISO 5488 & CB/T14360-93 requirements
-
Optional IACS certifications available:
CCS | NK | ABS | LR | BV | DNV·GL | RINA
Technical Specifications
| Steps | L1 (mm) | Max Height (mm) | Platform (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 12 | 3600 | 3500 | 5290 | 250 | 320 |
| 14 | 4200 | 4100 | 5890 | 250 | 330 |
| 16 | 4800 | 4590 | 6490 | 250 | 340 |
| 18 | 5400 | 5080 | 7090 | 250 | 530 |
| 20 | 6000 | 5800 | 7690 | 250 | 560 |
| … | … | … | … | … | … |
| 52 | 15600 | 13800 | 17290 | 420 | 1370 |
The description/sizes may be different with goods, please check with us when order.
