Accommodation Ladder for Submerger

This product is used for divers to go up and down and can also serve as a pilot ladder. It features a compact structure, simple design, convenient use, and reliability and safety. It is mainly used for various rescue ships and salvage craft with a compact structure, simple device, convenient and safe operation.

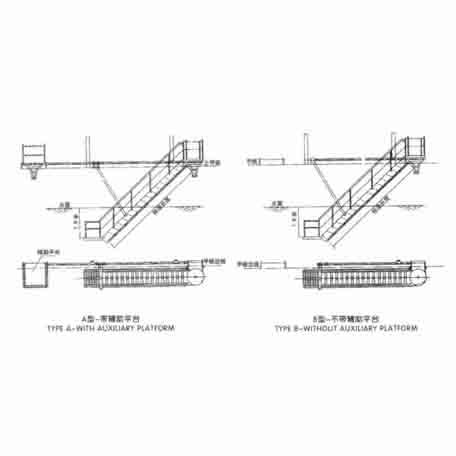

Types

Type A – with auxiliary platform
Type B – without auxiliary platform

Technical Specification Table

Type	Ladder Length (m)	Number of Steps	Max. Height (m)	Size of Syringer h×b×t (mm)	Size of Deck Attache L×B (mm)	Total Weight (kg)
					A (mm)	B (mm)
A	5.0	10	2.30	180×60×5	8100×500	6950×500
A	5.5	15	2.70	180×60×5	8600×500	7450×500
A	6.0	17	3.20	180×60×5	9100×500	7950×500
A	6.5	18	3.60	180×60×5	9600×500	8450×500
A	7.0	20	4.05	180×60×5	10100×500	8950×500
A	7.5	21	4.50	180×60×5	10600×500	9450×500
A	8.5	24	5.35	240×75×6	11600×500	10450×500
A	9.5	26	6.20	240×75×6	12600×500	11450×500
A	10.5	29	7.10	240×75×6	13600×500	12450×500

Notes

The maximum selection conditions: the water level drops to 1.8m water depth, the ladder frame is 220mm higher than the deck plate, and the maximum inclination angle is 60°.
