(TYPE A FOR CABIN) A60 WEATHERTIGHT AND GASTIGHT DOOR (SINGLE-LEAF, DOUBLE-LEAF)

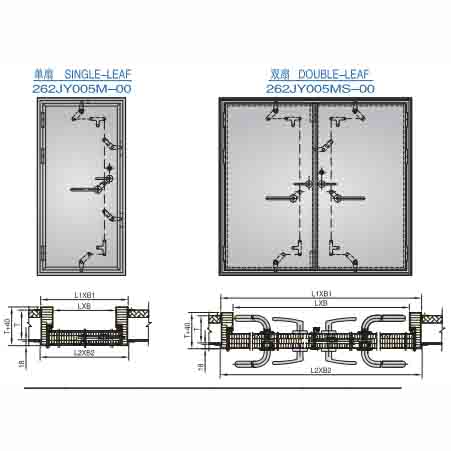

[Two diagrams: left is “Single – leaf 262JY005M – 00”, right is “Double – leaf 262JY005MS – 00”. Each diagram shows a front – view of the door with dimensions labeled L1×B1, L×B, L2×B2, and a side – view indicating the door’s structure and installation details.]
| Type | Size of Doorway L×B | Frame Size | Size of B.H. Opening L1×B1 | Weight (KG) | Optional Items |
|---|---|---|---|---|---|
| Single – leaf (262WHJ005M – 00) | 1600X600 | 1700X700 | 1705X705 | 119 | Door closer |
| 1650X650 | 1750X750 | 1755X755 | 128 | ||
| 1700X700 | 1800X800 | 1805X805 | 142 | ||
| 1700X750 | 1800X850 | 1805X855 | 142 (or other values as per table) | ||
| 1750X800 | 1850X900 | 1855X905 | 149 | ||
| 1900X900 | 2000X1000 | 2005X1005 | 162 | ||
| Double – leaf (262WHJ005MS – 00) | 1600X1000 | 1700X1100 | 1705X1105 | 172 | Door stopper |
| 1650X1100 | 1750X1200 | 1755X1205 | 184 | ||
| 1700X1000 | 1800X1100 | 1805X1105 | 230 | ||
| 1700X1300 | 1800X1400 | 1805X1405 | 230 (or other values as per table) | ||
| 1750X1600 | 1850X1700 | 1855X1705 | 280 | ||
| 2000X1850 | 2100X1950 | 2105X1955 | 324 |
Marking Examples:
- For a Type A cabin A60 single – leaf weathertight and gastight door with a doorway size of 1600X600, left – outer opening: (Type A for Cabin) A60 Single – leaf Weathertight and Gastight Door A601600X600 – 6.1 262JY005M – 00.
- For a Type A cabin A60 double – leaf weathertight and gastight door with a doorway size of 1600X1000, left – outer opening: (Type A for Cabin) A60 Double – leaf Weathertight and Gastight Door A601600X1000 – 5.1 & 6.1 262JY005MS – 00.
Attention please: The description might be incorrect, please contact us for confirmation.
