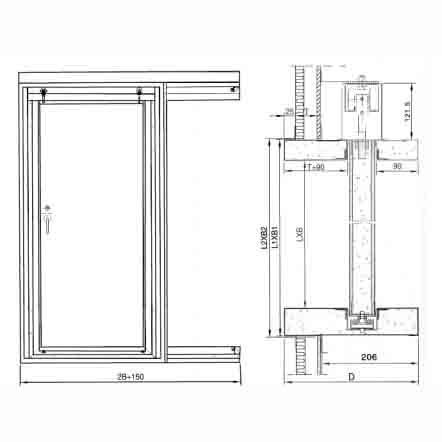

A60-TYPE SLIDING FIRE DOOR
262.YHS—057
表格
| SIZE OF DOORWAY
L×B |
SIZE OF OUTLINE
L1×B1 |
SIZE OF B.H. OPENING
L2×B2 |
D | OPENING | WEIGHT (KG) |
|---|---|---|---|---|---|
| 1700×700 | 1820×820 | 1825×825 | T+241 | LEFT (L) | 150 |
| 1750×750 | 1870×870 | 1875×875 | T+241 | LEFT (L) | 170 |
| 1800×800 | 1920×920 | 1925×925 | T+241 | RIGHT (R) | 187 |
| 2075×1875 | 2195×1995 | 2200×2000 | T+241 | RIGHT (R) | 293 |
AS INDICATION:
DOORWAY SIZE 1700×700, D 350, RIGHT SLIDING FOR A60 SLIDING FIRE DOOR
A60 SLIDING FIRE DOOR A60-1700×700350R 262.YHS-057
Note: The description may be different with the product, please contact us for quotation.
