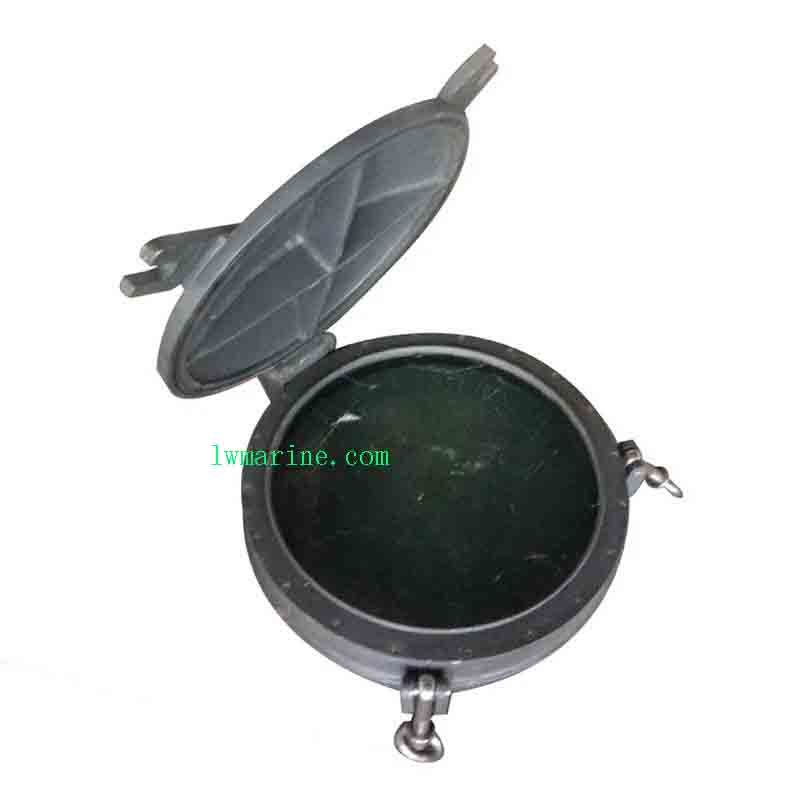

A60 Fireproof Side Scuttles: Top-Tier Fire Protection for Marine Vessels
Our A60 fireproof side scuttles are expertly designed to provide 60 minutes of reliable fire protection for marine vessels, ensuring the safety of crew and passengers in emergencies. These side scuttles are rigorously tested and certified to meet strict SOLAS and IMO safety regulations, making them a trusted choice for shipbuilders and maritime operators worldwide. They play a crucial role in maintaining compartment integrity during fires, while offering flexible installation options to suit various ship designs and requirements.
Key Features & Benefits
✔ Dual Material Construction Options:
- Marine-grade steel: Offers maximum durability and strength, ideal for heavy-duty applications.
- Lightweight aluminum alloy: Provides excellent corrosion resistance, extending the lifespan of the side scuttles in harsh marine environments.
- Both materials meet identical A60 fire performance standards, ensuring consistent protection.
✔ Multiple Installation Methods:
- Welded installation: Creates permanent watertight seals, preventing water ingress and ensuring long-term reliability.
- Bolted installation: Allows for easier maintenance access, facilitating quick repairs and replacements when needed.
- Pre-engineered flanges: Ensure perfect hull integration, simplifying the installation process and enhancing overall structural integrity.
✔ Enhanced Safety Accessories:
- Optional deadlight covers: Provide additional protection against external impacts and fire, enhancing the safety of the side scuttles.
- Intumescent fire seals: Expand under heat, effectively sealing gaps and preventing the spread of fire and smoke.
- Thermal break technology: Prevents heat transfer, keeping the interior of the vessel cool and comfortable during fires.
Technical Specifications
| Feature | Specification |
|---|---|
| Fire Rating | A60 Certified (60-minute protection) |
| Materials | Steel or Aluminum |
| Glass Type | Fire-resistant ceramic glass |
| Diameter Options | 200mm-600mm (custom sizes available upon request) |
| Watertight Rating | IP56 Standard |
| Certifications | SOLAS, IMO, ABS, DNV, LR, BV |
Detailed Size Chart
| TYPE | SIZE OF CLEAR (D) | D1 | D2 | D3 | D4 | D5 | h |
|---|---|---|---|---|---|---|---|
| A | L B | ||||||
| R B | 200 | 245 | 204 | 250 | 350 | 310 | 155 |
| 250 | 295 | 254 | 305 | 400 | 364 | 182 | |
| 300 | 350 | 304 | 360 | 450 | 414 | 207 | |
| 350 | 400 | 354 | 410 | 500 | 464 | 232 | |
| 400 | 450 | 404 | 460 | 550 | 514 | 257 |
| t | α | OUT OF CLIP | BOLT | SIZE OF OPENING (DEADLIGHT) | FRAME | WHORL | QUT |
|---|---|---|---|---|---|---|---|
| 10 | 45° | 2 | 3 | M16 | 8 | 253 | |
| 12 | 48° | 2 | 3 | M16 | 8 | 308 | |
| 15 | 31° | 3 | 3 | M16 | 12 | 363 | |
| 15 | 31° | 3 | 3 | M16 | 12 | 413 | |
| 19 | 31° | 3 | 3 | M18 | 12 | 463 |
FAQs
Q1: What is the fire rating of your A60 fireproof side scuttles?
A1: Our A60 fireproof side scuttles are certified to provide 60 minutes of fire protection, ensuring the safety of crew and passengers during emergencies.
Q2: Can I choose between steel and aluminum for the construction of the side scuttles?
A2: Yes, we offer both marine-grade steel and lightweight aluminum alloy options for our A60 fireproof side scuttles, allowing you to select the material that best suits your specific needs and preferences.
Q3: What installation methods are available for your side scuttles?
A3: Our side scuttles can be installed using welded, bolted, or pre-engineered flange methods, providing flexibility and ease of installation for various ship designs.
Q4: Do your side scuttles come with any additional safety accessories?
A4: Yes, we offer optional deadlight covers, intumescent fire seals, and thermal break technology as additional safety accessories to enhance the protection and performance of our side scuttles.
Q5: Are your side scuttles compliant with international maritime safety standards?
A5: Absolutely, our A60 fireproof side scuttles are certified to meet strict SOLAS and IMO safety regulations, as well as approvals from ABS, DNV, LR, and BV, ensuring worldwide acceptance and compliance.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
