63A Marine Large Current Watertight Brass Plug & Socket
Product 1: CTS3 – 3 Marine Large – Current Watertight Brass Plug

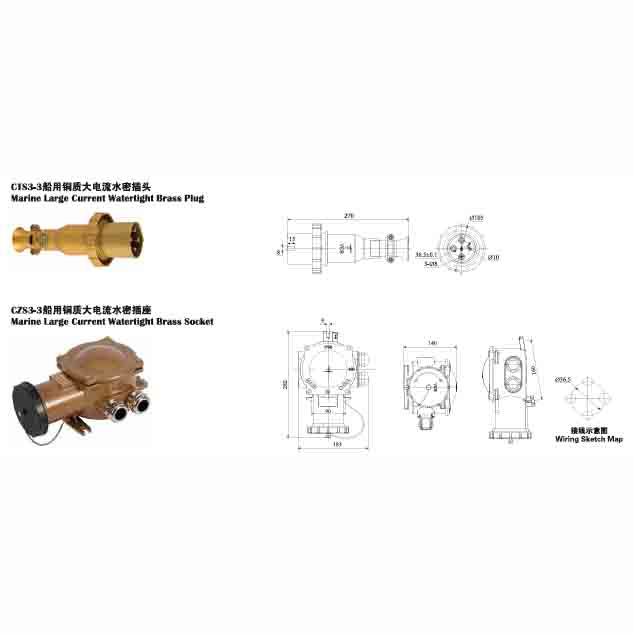

Product Image and Dimensional Diagram
[The image shows a CTS3 – 3 marine large – current watertight brass plug with a front – view photo and a detailed dimensional diagram. The diagram provides precise measurements of the plug’s length, width, height, and other relevant dimensions.]
Product 2: CZS3 – 3 Marine Large – Current Watertight Brass Socket
Product Image and Dimensional Diagram
[The image shows a CZS3 – 3 marine large – current watertight brass socket with a front – view photo, a side – view photo, and a detailed dimensional diagram. The dimensional diagram includes various measurements of the socket. Additionally, there is a wiring – sketch map showing the connection configuration for the socket.]
Applicable Scope
Suitable for ships and other places with high requirements for protection level, used for connecting and disconnecting AC/DC low – voltage electrical circuits.
Technical Specifications Table
| Item | CTS3 – 3 | CZS3 – 3 |
|---|---|---|
| Type | Marine Large – Current Watertight Brass Plug | Marine Large – Current Watertight Brass Socket |
| Weight | 2.2kg | 4.9kg |
| Rated Voltage | AC380/440V | AC380/440V |
| Rated Current | 63A | 63A |
| Protection Class | IP56 | IP56 |
| Cable Outside Diameter | Ø13 – Ø32 | Ø13 – Ø32 |
| Standard | IEC 60309; CB3895 – 2011 | IEC 60309; CB3895 – 2011 |
Attention please: The description may be different with the product, please contact us for quotation.
