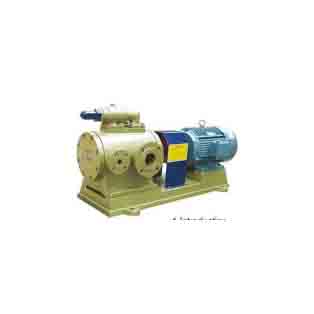

3GBW Three-Screw Insulation Pump

1. Introduction

3GBW type insulation three-screw pump is used to transport temperature ≤350℃, viscosity 3-760cSt, without solid particles, non-corrosive, lubricating properties of the medium.

Applicable pressure range: 0.6-2.5MPa
Applicable flow range: 0.6-123m³/h
Mainly used in fuel conveyance, hydraulic engineering, ship engineering, petrochemical and other industries.

2. 3GBW Type Insulation Screw Pump Application Range

Media for straight continuous transmission, no mixing, no pulsation.
Vibration is small, low noise.
High pressure, high efficiency.
Simple structure, easy disassembly.
Small size, lightweight.
Wear slightly, long life.

3GBW Type Insulation Screw Pump Structure
Generally use mechanical seal. The pump is driven by a motor through a claw-type coupling. From the spindle extension to the pump year, for the clockwise rotation.
Material: Main, from the screw 10NiCrMoS5, 45, 38CrMoALA; Pump body: HT200, QT450-10, ZGCr15Mo1, ZG270-500.

3. Technical Parameters

Model	Flow rate (m³/h)	Flow rate (L/min)	Outlet pressure (Mpa)	Pump speed (r/min)	Power (Shaft power KW)	Power (Motor power KW)	Must cavitation margin	Motor Type
45×3-36	2.8	46	0.6	950	0.8	1.1	5	90L
	2.7	45	1.0		1.2	1.5		100L-6-B3
	2.5	42	1.6		1.6	2.2		112M-6MB3
	2.4	40	2.5		2.8	4		132M-6B3
45×2-46	4.2	70	0.6	950	1.0	1.5	5	90L-4-63
	4.0	66	1.0		1.7	2.2		100L-4-B3
	3.8	63	1.6		2.8	3		100L-4-B3
	3.5	58	2.5		4.3	5.5		132-4-B3
	4.2	70	0.6	1450	1.0	1.5	5	100L-6-B3
	4.0	66	1.0		1.7	2.2		112M-6-B3
	6.3	105	0.6		1.5	2.2		100L-4-B3
60×2-43	6.1	101	1.0	950	2.3	3		100L-4-B3
	8.58	143.4	0.6		2.06	3		132S-6-B3
	8.25	137.9	1.0		3.18	4		132M-6-B3
	13.1	218.9	0.6		3.15	4		112M-4-B3
	12.6	210.5	1.0		4.86	7.5		132M-4-B3
60×2-46	9.8	163	0.8	950	2.9	4	5	132M-6-B3
	9.5	158	1.0		3.6	5.5		132M-6-B3
	15.1	251	0.6	1450	3.6	5.5		132S-4-B3
	14.6	243	1.0		5.5	7.5		132M-4-B3
	17.0	283.3	0.8	950	4.3	7.5		160M-6-B3
80×2-36	25.7	428	0.6	1450	5.4	7.5	5.5	132M-4-B3
	25.0	417	1.0		8.5	11		160M-4-B3
	23.9	398.5	0.6	950	5.5	7.5		160M-6-B3
	23.1	386.3	1.0		8.6	11		160M-6-B3
80×2-46	36.6	610.3	0.6	1450	8.4	11	5.5	160M-6-B3
	35.7	594.5	1.0		13.1	15		160M-6-B3
	24.2	403.5	0.6	960	5.52	7.5		160M-6-B3
90×2-36	23.6	394.6	1.0	1450	8.52	11	5.5	160M-4-B3
	37	615.9	0.6		8.52	11		160M-4-B3
	36.1	602.4	1.0		13	15		160M-4-B3
90×2-42	28.2	470.9	0.6	950	6.6	11	5.5	160L-6-B3
	27.5	457.6	1.0		10.2	15		180L-6-B3
	43.1	718.8	0.6	1450	10	15		160L-6-B3
	41.9	698.5	1.0		15.5	18.5		180L-6-B3
	34.0	566.7	0.8	950	9.7	11		160L-6-B3
90×2-46	52.6	875.4	0.6	1450	12	15	5.5	160L-8-3
	52.0	866	0.8		14.9	18.5		180L-8-B3
100×2-46	51.4	856.1	1.0	950	18.6	22		180L-8-B3
	48.0	800	0.8		13.3	15		180L-6-B3
	72.7	1212	0.6	1450	16.5	18.5		180L-6-B3
	72.0	1200	0.8		20.4	22		180L-4-B3
	71.2	1187	1.0		25.5	30		200L-4-B3
	56.9	948.9	0.6	950	12.5	15		180L-6-B3
	55.7	928.6	1.0		20.8	30		225S-6-B3
100×2-51	86.9	1448.3	0.6	1450	19.1	22	5.5	180L-4-B3
	85.0	1417.2	1.0		31.8	37		225S-4-83
110×2-46	60.9	1015	0.6	950	13.7	18.5		200L-6-B3
	58.9	951.7	1.0		21.8	30		255M-6-B3
	96.7	1611	0.6	1450	21.9	30		200L-4-B3
120×2-42	67.9	1131	0.6	950	15.5	18.5		200L-6-B3
	65.4	1090	1.0		24.5	30		225M-6-B3
	108	1802	0.6	1450	24.7	30		200L-4-B3
120×2-46	105	1760	1.0		38.2	45		225M-4-B3
	79.6	1327	0.6	950	17.8	22		200L-6-B3
	77.2	1285	1.0		28.2	37		250M-6-B3
	126	2101	0.6	1450	28.5	37		225S-4-B3
150×2-46	123	2059	1.0		44.1	55	5.5	250M-4-B3
	158	2640	0.6	950	34.6	45		Y280S-6-B3
	154	2582	1.0		54.5	75		Y315S-6-B3
	241.7	4029.7	0.6	1450	53.8	75		Y280S-4-B3
	236.5	3942.2	1.0		82.2	90		Y280M-4-B3
