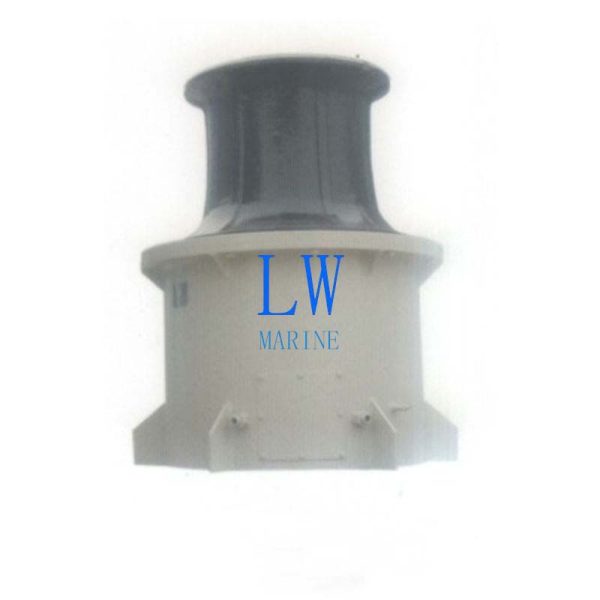

20kN Marine Hydraulic Capstan – Compact & Efficient Deck Solution
Versatile Hydraulic Capstan for Marine Operations
The 20kN Marine Hydraulic Capstan is a high-performance deck machinery unit designed for mooring, anchoring, and line handling on mid-sized vessels. Available in both vertical and horizontal configurations, this capstan delivers 2-ton pulling capacity with precision stepless control, making it ideal for vessels requiring space-efficient deck equipment.
Key Applications
✔ Commercial Fishing Vessels – Mooring and net handling
✔ Yacht & Workboat Deck – Space-saving line control
✔ Harbor Pilot Boats – Secure docking operations
✔ Offshore Support Vessels – Auxiliary load management
Technical Specifications
Configuration Options

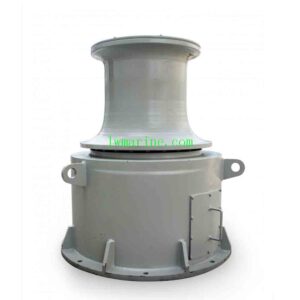

Vertical Capstan
-
360° Operation: Omnidirectional line access
-
Space-Saving: Below-deck drive system
-
Best For: Mixed rope/chain handling

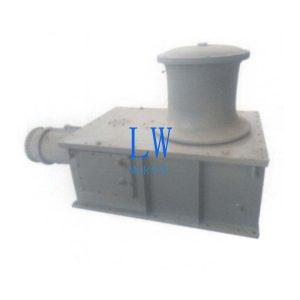

Horizontal Capstan
-
Easy Access: Full above-deck installation
-
Directional Control: Optimized for dedicated line handling
-
Best For: Chain-focused operations
Core Components
✔ 20kN Hydraulic Drive – Smooth 2-ton capacity
✔ Precision Gearbox – Efficient power transmission
✔ Marine-Grade Drum – 316L stainless steel contact surfaces
✔ Fail-Safe Braking – Manual + hydraulic systems
Performance Features
-
Stepless Speed Control – Infinite adjustment capability
-
Corrosion Resistance – Triple-layer marine coatings
-
Low Maintenance – Easy-access service points
-
Safety Systems – Overload protection + emergency stop
Certifications & Compliance
✔ IRS, LR, RINA Certified
✔ SOLAS Safety Compliant
✔ IMO Marine Equipment Standards
Parameters:
| Type | Mooring Speed (m/min) | Wire Dia.(mm) | Working Load(KN) | Motor Capacity(KW) |
| 20KN | 12 | φ15 | 20 | 11 |
The description/sizes may be different with goods, please check with us when order.
