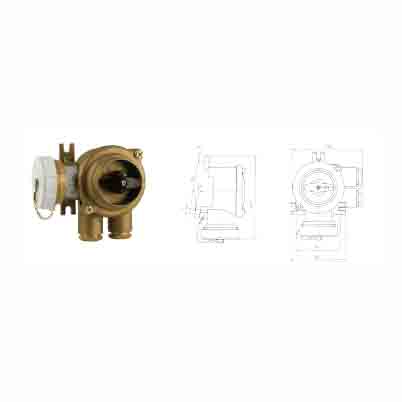

16A MARINE BRASS SOCKET WITH SWITCH
Main Parameters
| Item | Content |
|---|---|
| The scope of application | Used for connecting cutting on or off the appliance circuit with AC or DC low-voltage |
| Protection Class | IP56 |
| Cable outside diameter | φ14~φ16 |
| Material | Brass |
| Stand Illustration | Voltage | 24V | 125V | 250V | 500V |
|---|---|---|---|---|---|
| 1 Pole (1NO) | Code | 1144 | |||
| General cable type | CZKH101-1 | CZKH101-2 | CZKH101-3 | CZKH101-4 | |
| Shield cable type | CZKH111-1 | CZKH111-2 | CZKH111-3 | CZKH111-4 | |
| Weight | 1.50kg | 1.50kg | 1.50kg | 1.50kg | |
| 2 Pole (2NO) | Code | 1144/R | |||
| General cable type | CZKH109-1 | CZKH109-2 | CZKH109-3 | CZKH109-4 | |
| Shield cable type | CZKH119-1 | CZKH119-2 | CZKH119-3 | CZKH119-4 | |
| Weight | 1.50KG | 1.50KG | 1.50KG | 1.50KG | |
| 1 Pole 1 Throw (1NO1NC) | Code | 1144/D | |||
| General cable type | CZKH201-1 | CZKH201-2 | CZKH201-3 | CZKH201-4 | |
| Shield cable type | CZKH211-1 | CZKH211-2 | CZKH211-3 | CZKH211-4 | |
| Weight | 1.70KG | 1.70KG | 1.70KG | 1.70KG | |
| 2 Pole 1 Throw (2NO1NC) | Code | 1144/2 | |||
| General cable type | CZKH202-1 | CZKH202-2 | CZKH202-3 | CZKH202-4 | |
| Shield cable type | CZKH212-1 | CZKH212-2 | CZKH212-3 | CZKH212-4 | |
| Weight | 1.70KG | 1.70KG | 1.70KG | 1.70KG | |
| 3 Pole (3NO) | Code | 1144/2/R | |||
| General cable type | CZKH209-1 | CZKH209-2 | CZKH209-3 | CZKH209-4 | |
| Shield cable type | CZKH219-1 | CZKH219-2 | CZKH219-3 | CZKH219-4 | |
| Weight | 1.70KG | 1.70KG | 1.70KG | 1.70KG |
Attention please: The description may be different with the product, please contact us for quotation.
