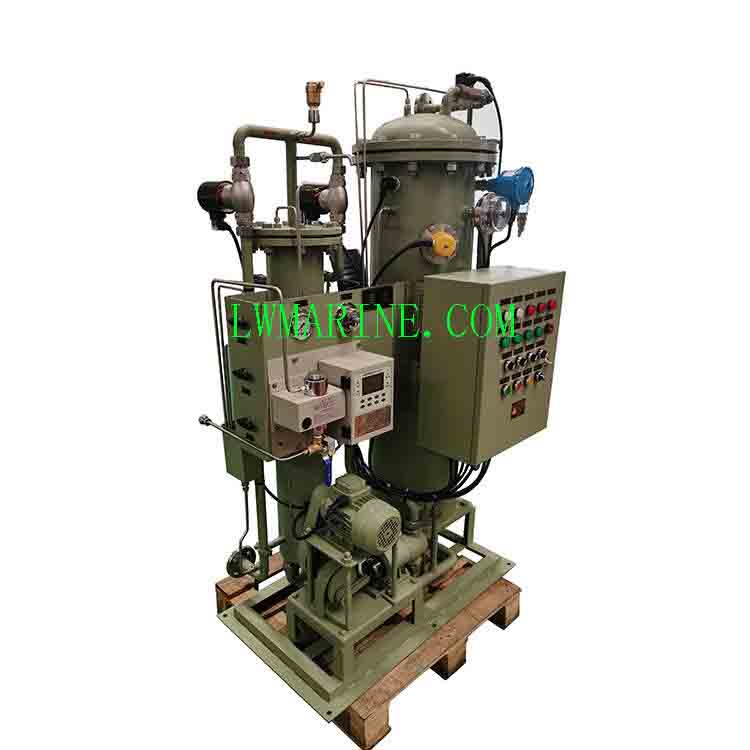

15ppm Bilge Water Separator

YWC Series 15ppm Bilge Water Separator | IMO MEPC.107(49) Certified | Complete Range (0.25-5 m³/h) | Multi-Stage Filtration System

Product Overview
The YWC Series 15ppm Bilge Water Separator represents a comprehensive range of IMO MEPC.107(49) certified oily water treatment systems designed for vessels of all sizes. Utilizing advanced three-stage separation technology, these systems ensure reliable processing of bilge water to meet the stringent ≤15ppm international discharge standard. From compact units for small boats to high-capacity systems for large commercial vessels, the YWC Series offers complete solutions with integrated monitoring and automatic safety controls.

Key Features & Benefits

Complete Capacity Range: 0.25 to 5 m³/h models available for all vessel sizes and requirements
IMO MEPC.107(49) Certified: Full compliance with international marine pollution prevention standards
Advanced Three-Stage Technology: Combines gravity separation, fiber filtration, and membrane permeation for superior performance
Integrated Monitoring System: Includes 15ppm bilge alarm and automatic shutdown device for compliance assurance
Vacuum Negative Pressure Design: Prevents emulsion formation and ensures efficient separation
Global Power Compatibility: Supports 3Phase/380V-480V, 50/60Hz electrical systems worldwide
Comprehensive Model Range: Nine standard sizes with optimized dimensions for space-efficient installation

Technical Specifications Overview

Model	Capacity (m³/h)	Heater Power (kW)	Motor Power (kW)	Dimensions L×W×H (mm)	Dry Weight (kg)	Vessel Size (KDWT)
YWC-0.25	0.25	1	0.37	1000×600×1250	400	<1
YWC-0.5	0.5	3	0.55	1100×690×1460	600	1-5
YWC-1	1	6	0.75	1050×1000×1620	800	5-10
YWC-1.5	1.5	6	1.1	1100×1130×1650	1060	10-30
YWC-2	2	6	1.1	1900×1120×1700	1260	30-50
YWC-2.5	2.5	6	1.5	1900×1120×1900	1500	50-100
YWC-3	3	6	1.5	1700×1500×1900	1800	100-200
YWC-4	4	12	2.2	2280×1700×1900	2100	100-300
YWC-5	5	12	2.2	2590×2000×1900	2500	>300

Three-Stage Separation Technology

First Stage: Cone plate gravity separation and coalescence for initial oil removal
Second Stage: Fiber filtration for secondary purification and particle removal
Third Stage: Membrane permeation for final polishing to ≤15ppm standard

Unique Vacuum System Advantage
The YWC Series incorporates an innovative vacuum negative pressure design that prevents bilge water emulsion formation caused by pressurized feed pumps. This breakthrough technology ensures consistent separation efficiency even with challenging oil-water mixtures.

Maintenance Guidelines
Daily/Weekly Maintenance

Clean suction filter assembly weekly using 80-mesh stainless steel wire
Inspect bilge water pump operation including temperature, noise, and leakage
Check belt tension and adjust as necessary
Monitor pressure differentials across coalescer and dialysis apparatus
Verify proper operation of automatic oil-discharging device
Test 15ppm bilge water alarm according to manufacturer instructions

Performance Monitoring
Regular pressure monitoring provides early detection of system status. Abnormal pressure differentials indicate potential issues requiring attention, ensuring continuous compliant operation.
