12-Strand HMPE Rope

12-Strand HMPE Rope

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

12-Strand HMPE Rope

General

  • Construction: 12-Strand

  • Material: HMPE

  • Density: 0.97g/cm³, Floating

  • Melting Point: 147℃/220℃

  • Chemical Resistance: Excellent

  • UV Resistance: Excellent

  • Compliant with: OCIMF MEG4 and Q1502

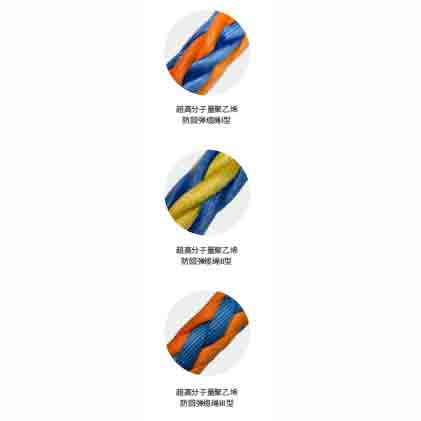

12-Strand HMPE Rope (Reduced-Recoil-Risk) rope is a 12-strand rope made of High Modulus Polyethylene (HMPE) fiber. It is designed to significantly reduce snap-back recoil in mooring lines. It is known for its high strength, light weight, low elongation, and excellent abrasion resistance. The rope is manufactured in compliance with the latest OCIMF MEG4 safety guidelines and Q1502, ensuring the highest quality and safety standards.

Key Features

  • Safety first: The RRR construction minimizes the risk of dangerous snap-back recoil in the event of a failure, protecting personnel and equipment.

  • High strength and low weight: Strength is equal to steel wire rope of the same diameter, while it is only 1/8th the weight of steel.

  • Low elongation: 2.5-3.5% elongation helps keep mooring lines stable.

  • Low water absorption: Excellent performance in marine environments.

  • Excellent chemical resistance: Resistant to most acids, alkalis, and solvents.

  • High wear resistance: The outer surface is resistant to abrasion and wear.

Benefits

  • Easy to handle / Easy to splice / Easy to inspect / Excellent abrasion resistance / No rotation under load / Excellent stability / No snap back risk.

  • Application: Mooring and towing of ships and HSiCs, offshore engineering, etc.

12-Strand Performance Parameters (ISO MEG4 & Q1502)
Size (mm) Circumference (inch) Weight (kg/100m) Type I Breaking Strength (ISO MEG4) kN Type I Breaking Strength (ISO MEG4) Ton Type I Breaking Strength (MEG4 LDBF) kN Type I Breaking Strength (MEG4 LDBF) Ton Type II Breaking Strength (ISO MEG4) kN Type II Breaking Strength (ISO MEG4) Ton Type II Breaking Strength (MEG4 LDBF) kN Type II Breaking Strength (MEG4 LDBF) Ton Type III Breaking Strength (ISO MEG4) kN Type III Breaking Strength (ISO MEG4) Ton Type III Breaking Strength (MEG4 LDBF) kN Type III Breaking Strength (MEG4 LDBF) Ton
16 2 173 38.1 267 27.2 240 24.5 N/A N/A N/A N/A N/A N/A N/A
18 2 1/4 206 45.3 322 32.9 290 29.6 N/A N/A N/A N/A N/A N/A N/A
20 2 1/2 249 54.8 384 39.2 346 35.3 N/A N/A N/A N/A N/A N/A N/A
24 3 346 76.1 533 54.4 480 49.0 N/A N/A N/A N/A N/A N/A N/A
28 3 1/2 466 102.5 704 71.9 634 64.7 571 58.2 514 52.4 N/A N/A N/A
30 3 3/4 534 117.5 789 80.5 710 72.4 636 64.9 572 58.4 N/A N/A N/A
32 4 611 134.4 918 93.7 826 84.3 743 75.9 669 68.3 N/A N/A N/A
34 4 1/4 677 148.9 989 100.9 890 90.8 802 81.8 722 73.6 N/A N/A N/A
36 4 1/2 742 163.2 1104 112.7 994 101.4 840 85.7 756 77.1 840 85.7 756 77.1
38 4 3/4 878 193.2 1210 123.5 1089 111.1 1034 105.5 931 95.0 1034 105.5 924 95.0
40 5 942 207.2 1335 136.6 1196 122.0 1027 104.8 924 94.3 1027 104.8 931 94.3
44 5 1/2 1140 250.8 1582 161.4 1430 145.9 1258 128.3 1132 115.5 1258 128.3 1132 115.5
48 6 1326 291.7 1807 184.4 1626 165.9 1475 150.5 1327 135.4 1475 150.5 1327 135.4
52 6 1/2 1534 347.5 2136 217.9 1922 196.1 1764 180.0 1588 162.0 1764 180.0 1588 162.0
56 7 1822 400.8 2446 251.5 2218 226.3 2093 209.5 1848 188.6 2093 209.5 1848 188.6
60 7 1/2 2039 461.8 2778 283.4 2500 255.1 2343 239.1 2111 215.4 2343 239.1 2111 215.4
64 8 2349 516.8 3052 310.5 2783 284.0 2637 269.7 2373 242.1 2637 269.7 2373 242.1
68 8 1/2 2674 588.3 3466 354.6 3140 321.0 3016 307.7 2714 277.0 3016 307.7 2714 277.0
72 9 2999 659.8 3888 397.7 3508 358.0 3380 346.6 3041 311.8 3380 346.6 3041 311.8
76 9 1/2 3308 728.0 4263 435.0 3837 391.5 3757 383.3 3381 345.0 3757 383.3 3381 345.0
80 10 3651 803.2 4628 472.2 4165 425.0 4118 420.2 3707 378.2 4118 420.2 3707 378.2
88 11 4361 959.4 5649 557.6 4918 501.8 4947 504.8 4452 454.3 4947 504.8 4452 454.3
96 12 5111 1124.9 6342 647.0 5680 580.6 5824 594.0 5240 534.6 5824 594.0 5240 534.6
104 13 6188 1363.0 7522 767.6 6770 690.8 7047 719.0 6342 647.1 7047 719.0 6342 647.1
112 14 6991 1538.0 8558 873.2 7702 785.9 8102 826.7 7292 744.1 8102 826.7 7292 744.1

Note:

  • MBL = Minimum Breaking Force per ISO2307.

  • LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.

  • Other sizes are available upon request.

Note: The description may be different with the product, please contact us for quotation.
