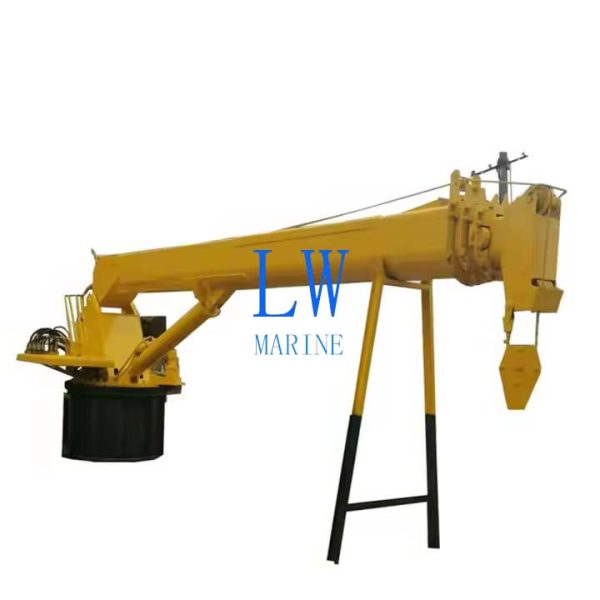

Marine 100kN Telescopic Boom Crane
Application
The 100kN Telescopic Boom Crane (10-ton capacity) is a heavy-duty lifting solution engineered for precision load handling in marine environments. With its straight, extendable boom, it delivers superior reach and stability compared to knuckle boom designs, making it ideal for:
-
Cargo operations: Loading/unloading containers and heavy equipment
-
Offshore maintenance: Platform construction and repair
-
Deck operations: Precise equipment positioning
-
Shipyard services: Vessel construction and retrofitting
Key Features:
✔ 10-ton capacity (100kN / 22,000 lbs)
✔ Telescoping boom for adjustable reach (up to 25m)
✔ 270° slewing for optimized deck coverage
✔ Marine-grade construction for saltwater durability
Material Options
-
Aluminum: Lightweight (30% lighter than steel) for improved stability
-
Carbon Steel: High-tensile strength for heavy loads
-
Stainless Steel: 316L grade for maximum corrosion resistance
Advantages & Features
-
Heavy-Duty Design: Reinforced boom with 20% higher fatigue life
-
Space-Saving: Retracts to 40% of operational length
-
Low Maintenance:
-
Centralized lubrication system
-
Sealed pivot bearings (10,000-hour service interval)
-
-
High-Performance:
-
Smooth electro-hydraulic controls
-
15% faster cycle times than standard cranes
-
-
Custom Configurations:
-
Boom lengths: 8m–25m
-
Specialized load attachments
-
-
Motor Options:
-
Standard 30kW electric motor
-
ATEX-certified explosion-proof models
-
-
Safety Systems:
-
Dual-circuit overload protection
-
Automatic load moment indicator
-
-
270° Slewing: Programmable working zone limits
-
Certifications: BV, LR, RINA, DNV, ABS
Parameters:
| SWL | 100 |
| Working Radius | 2.7-12.5m |
| Motor Power | 55KW |
| Power source | 380V / 50Hz |
| Protect Class | IP44 |
| Insulate Class | F |
| Hoisting Speed | 10m/min |
| Hoisting Height | 30m |
| Slewing Speed | ~0.8r/min |
| Slewing Angle | 270° |
| Luffing Time | ~60s |
| Tirm | ≤2° |
| Heel | ≤5° |
The description/sizes may be different with goods, please check with us when order.
