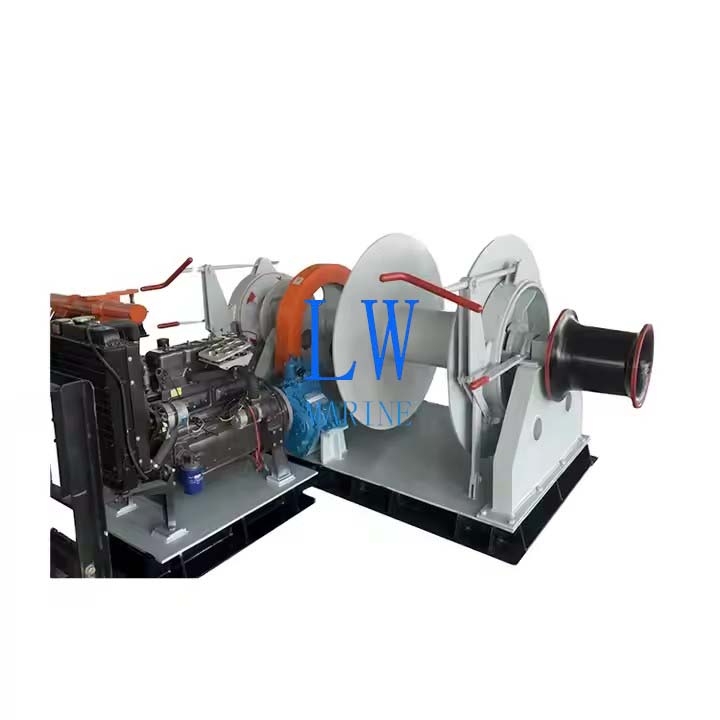

100kN Diesel Engine Winch
The 100kN Diesel Engine Winch is a self-sufficient, heavy-duty marine equipment powerhouse, specifically engineered to handle simultaneous heavy-load operations. Equipped with two independently operable drums and an open-gearbox design (with the option for a closed gearbox), this winch system offers unparalleled adaptability for a variety of marine applications, including anchoring, towing, and load handling, especially in scenarios where electrical power sources are unreliable or unavailable.
Key Usage Scenarios
✔ Offshore Anchor Deployment and Retrieval – Conduct simultaneous anchor and chain handling tasks with ease
✔ Tugboat Towing Operations – Utilize a dual-line setup for enhanced stability during towing
✔ Intensive Salvage Missions – Manage parallel loads effectively during salvage operations
✔ Port and Dock Assistance – Position vessels with high precision and capacity
Technical Details
Core Innovative Characteristics
✔ Dual 100kN Capacity Drums – Function independently or in sync (total capacity of 200kN)
✔ Marine Diesel Engine Power – Operate continuously without the need for shore-based power
✔ Open Gearbox (Standard Configuration) – Designed for easy maintenance (Closed gearbox available as an option)
✔ Manual Control Interface – Direct engagement of brakes and clutches
Performance Enhancements
Optimal Power Transmission Efficiency – Minimal energy wastage in the drive train system
Marine-Grade Robust Construction – Composed of a 316 stainless steel, aluminum, and carbon steel blend
Accurate Load Control – Independent control of each drum for precise load management
Reduced Maintenance Needs – Service points are easily accessible for quick maintenance
Control and Safety Mechanisms
Multi-Station Control: Local levers combined with wireless remote control (up to 100m range)
Safety Features: Overload prevention and emergency stop mechanisms
Monitoring Capabilities: Optional load cells and speed sensors for enhanced monitoring
Certifications and Compliance Standards
✔ Certified by RINA, BV, LR
✔ Compliant with SOLAS safety regulations
✔ Meets IMO marine equipment standards
Parameters:
| Parameter | Mooring Speed (m/min) | Rope Diameter (mm) | Rope Capacity (m) | Working Load (kN) | Holding Load (kN) | Engine Power (kW) | Engine Speed (rpm) |
|---|---|---|---|---|---|---|---|
| Value | 9 | 38 | 300 | 100 | 200 | 40 | 1500 |
The description/sizes may be different with goods, please check with us when order.
