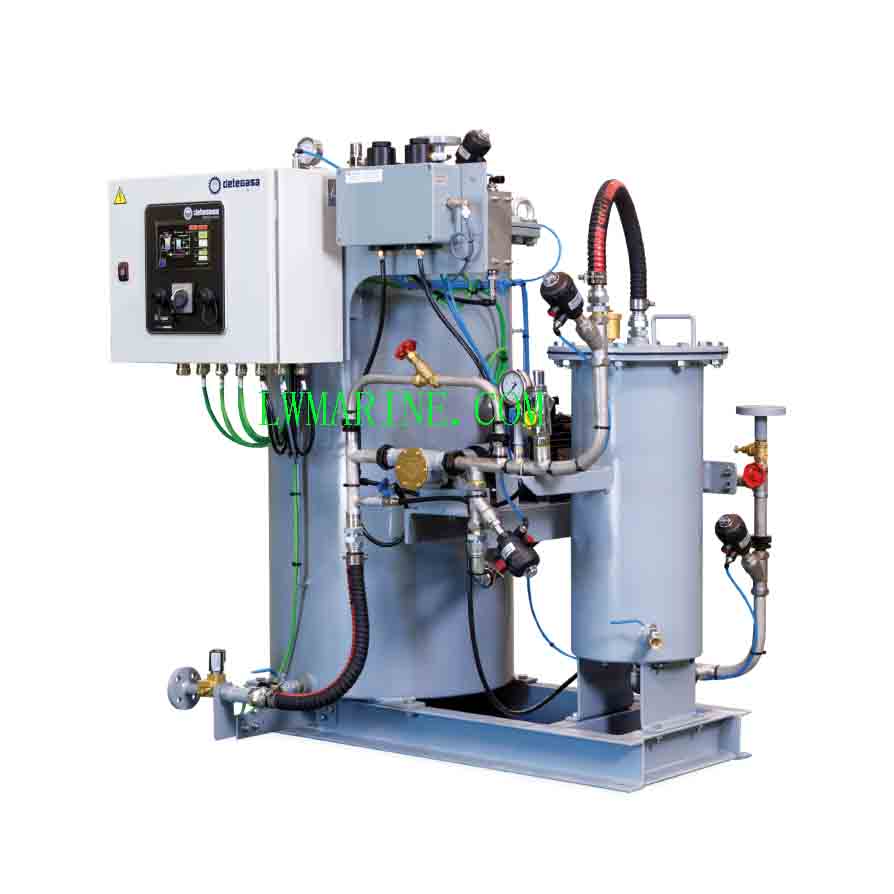

1 m³/h Marine Oily Water Separator
The YSZ-1.0 1 m³ Marine Oily Water Separator is a high-efficiency, gravity and isolation type filtration system designed for reliable bilge water treatment onboard vessels. With 1 m³/h capacity, this comprehensive system ensures full compliance with IMO MEPC.107(49) regulations, maintaining discharge quality below 15ppm. Its integrated design includes all necessary components for complete oily water separation, monitoring, and control.
Key Features & Benefits
-
Advanced Dual Separation Technology: Combines gravity separation and isolation filtration for superior oil removal efficiency
-
Complete Integrated System: Includes separator, dedicated pump, electric control box, and 15ppm bilge alarm in one package
-
IMO MEPC.107(49) Certified: Guarantees compliance with international marine environmental standards
-
High Capacity Performance: 1 m³/h treatment capacity suitable for medium-sized vessels
-
Energy Efficient Operation: 0.37kW motor with 2kW heating capability for cost-effective operation
-
Global Power Compatibility: Supports 3Phase/380V/50Hz and 3Phase/440V/60Hz electrical systems
-
Comprehensive Monitoring: Integrated 15ppm bilge alarm with automatic monitoring and control
-
IACS Certification Ready: Available with all major classification society approvals
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YSZ-1.0 |
| Treatment Capacity | 1 m³/h |
| Discharge Standard | ≤15 ppm (IMO MEPC.107(49)) |
| Working Pressure | ≤0.3 MPa |
| Motor Power | 0.37 kW |
| Electric Heating Power | 2 kW |
| Power Supply | 3Ph/380V/50Hz or 3Ph/440V/60Hz |
Connection Interface Specifications
| Connection Point | Size (DN) |
|---|---|
| Standard Discharge Outlet | 25 |
| Exceed Standard Outlet | 25 |
| Oil-Discharge Outlet | 20 |
| Back Flushing Inlet | 25 |
| Clean Water Inlet | 25 |
| Oily Water Inlet | 40 |
Complete System Components
-
Gravity and isolation type separator unit
-
Special-purpose transfer pump
-
Electric control box with automation
-
15ppm bilge water alarm monitoring device
-
Suction filters and pre-filtration system
-
Complete pipeline network
-
Control valves and fittings
-
2kW electric heating system
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
