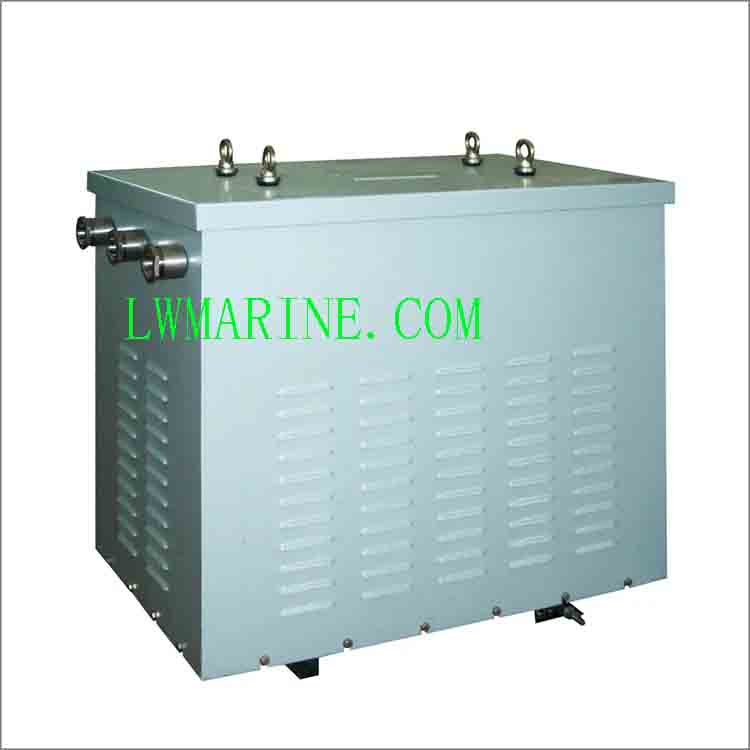

While engines propel vessels, it’s the intricate electrical systems that power virtually everything else onboard – from navigation and communication to lighting, HVAC, and critical machinery. At the heart of managing and distributing this electrical power safely and efficiently lie marine transformers. These often-overlooked components are vital for adapting voltage levels, ensuring system stability, and protecting equipment in the demanding marine environment.
What is a Marine Transformers & Why is it Essential?
Fundamentally, a transformer is a static electrical device that transfers electrical energy between circuits through electromagnetic induction. It increases (steps up) or decreases (steps down) alternating current (AC) voltage levels without changing the frequency. In the marine context, transformers serve several critical functions:
- Voltage Transformation: Adapting voltages between different parts of the ship’s shipboard power system.
- Stepping Down: Reducing high generator voltage (e.g., 6.6kV, 11kV) to lower distribution voltages (e.g., 440V, 380V) for general ship services and machinery.
- Stepping Down Further: Providing safe low voltage supplies (e.g., 230V, 120V, 24V) for lighting, sockets, and control circuits via lighting transformers or ship service transformers.
- Stepping Up (Less Common): Occasionally required for specific high-voltage equipment or potentially in electric propulsion systems feeding motors.
- Galvanic Isolation: Physically and electrically separating different circuits. This:
- Breaks potential ground loops that can cause interference or corrosion (electrolytic corrosion).
- Enhances safety by preventing faults in one circuit from directly propagating to another.
- Provides a reference ground point for isolated circuits.
- System Stability & Power Quality: Transformers contribute to the overall short-circuit capacity of the system and help manage voltage regulation.
- Specialized Functions: Including rectifier transformers (feeding DC equipment like thrusters or variable speed drives), autotransformers (for specific voltage matching with less isolation), zig-zag grounding transformers (for creating artificial neutral points in ungrounded or impedance-grounded systems), and instrument transformers (Current Transformers – CTs and Voltage Transformers – VTs) for metering and protection.
Key Design Features for the Harsh Marine Environment
Marine transformers are not simply industrial units placed on a ship. They are engineered to withstand unique challenges:
- Robust Construction & Materials:
- Enclosures: Typically drip-proof (IP22), weatherproof (IP44/56), or even water-cooled designs. Constructed from corrosion-resistant materials like stainless steel or specially coated mild steel.
- Core: High-quality grain-oriented electrical steel laminations minimize losses and noise. Secure clamping prevents vibration damage.
- Windings: Copper or aluminum windings with marine-grade insulation systems (e.g., Class B (130°C), Class F (155°C), or Class H (180°C)). Insulation must resist moisture absorption, salt spray, fungus, and thermal degradation.
- Vibration Resistance: Designed to withstand significant engine vibration and hull flexing without damage to core, windings, or connections. Anti-vibration mounts are common.
- Cooling Methods: Crucial due to space constraints and ambient heat.
- ONAN (Oil Natural Air Natural): Oil-filled tank with radiators cooled by ambient air. Common for larger power transformers.
- ONAF (Oil Natural Air Forced): Adds fans to the radiators for increased cooling capacity.
- AN (Air Natural): Dry-type transformers cooled by natural convection. Common for lower ratings.
- AF (Air Forced): Dry-type transformers with forced ventilation (fans). Used where space is tight or heat dissipation is high.
- Water-Cooled (WF): Used for very high-power density applications (e.g., large propulsion transformers), using ship’s cooling water.
- Protection Systems: Include temperature sensors (winding and oil), pressure relief devices (for oil-filled types), liquid level gauges, and sometimes gas detection (Buchholz relay) for internal fault detection in oil-filled units.
- Tappings: Many marine transformers have off-circuit or on-load tap changers (OLTC) to adjust the output voltage slightly, compensating for generator voltage variations or cable voltage drops.
Marine Transformer Types & Applications
- Main Power Transformers (Feeder Transformers): Located near the main switchboard or emergency switchboard, stepping down generator voltage to primary distribution voltage (e.g., 6.6kV -> 440V). High power ratings, often oil-filled (ONAN/ONAF).
- Distribution Transformers: Further step down voltage (e.g., 440V -> 230V/120V) for local distribution boards supplying specific areas or large loads. Can be dry-type (AN/AF) or oil-filled.
- Lighting Transformers: Dedicated units supplying low-voltage lighting circuits (e.g., 440V -> 230V/120V/24V). Typically dry-type.
- Control Circuit Transformers: Provide isolated, stable low voltage (e.g., 110V, 24V) for control panels, relays, and instrumentation. Small dry-type units.
- Rectifier Transformers: Specifically designed to supply diode or thyristor rectifiers for DC systems (propulsion thrusters, variable speed drives). Handle high harmonic currents and may have phase-shifted windings.
- Harbor / Shore Connection Transformers: Facilitate connecting the ship to shore power (which may have different voltages/frequencies) by transforming the shore supply voltage to match the ship’s distribution voltage.
- Instrument Transformers (CTs & VTs): Not power transformers, but critical for measurement and protection. Current Transformers (CTs) scale down high currents for meters and relays. Voltage Transformers (VTs) scale down high voltages.
Stringent Marine Standards & Classification
Marine transformers must comply with rigorous international and classification society rules to ensure safety and reliability:
- IEC (International Electrotechnical Commission): Standards like IEC 60076 (Power Transformers), IEC 60092-304 (Electrical Installations in Ships – Transformers), IEC 60529 (IP Codes).
- IEEE (Institute of Electrical and Electronics Engineers): Standards like IEEE 45 (Recommended Practice for Shipboard Electrical Installations).
- Major Classification Societies: Lloyd’s Register (LR), Det Norske Veritas – Germanischer Lloyd (DNV GL), American Bureau of Shipping (ABS), Bureau Veritas (BV), RINA, etc. These societies have specific rules (marine classification rules) covering design, materials, testing, and installation. Class approval is mandatory for most transformers on classed vessels.
- IMO (International Maritime Organization): While not directly specifying transformers, IMO conventions (like SOLAS – Safety of Life at Sea) drive overall electrical safety requirements that transformers help fulfill.
Maintenance & Operational Considerations
- Regular Inspections: Visual checks for corrosion, leaks (oil-filled), damage, cleanliness, security of connections, and cooling system operation (fans, radiators).
- Preventive Maintenance: Cleaning of air filters and cooling surfaces (radiators, fins). Checking oil level and condition (for oil-filled types – oil sampling and testing is crucial). Tightening electrical connections.
- Monitoring: Observing operating temperatures (winding, oil, coolant) and load currents. Trending this data helps predict potential issues.
- Testing: Periodic insulation resistance testing (Megger testing), turns ratio testing, and potentially power factor testing as part of a predictive maintenance program.
- Environment: Ensuring adequate ventilation around the transformer. Keeping the area clean and dry.
Conclusion: The Critical Link in the Electrical Chain
Marine transformers are fundamental, robustly engineered components that silently and reliably enable the complex electrical networks onboard modern vessels. By expertly managing voltage levels, providing essential isolation, and ensuring power quality, they protect sensitive equipment and contribute significantly to the safety, efficiency, and operational capability of ships. Understanding their types, design features, stringent regulatory environment, and maintenance requirements is vital for marine engineers, electrical officers, ship designers, and suppliers. Investing in high-quality, class-approved transformers from reputable manufacturers, coupled with diligent maintenance, ensures these vital power regulators continue their critical function throughout the vessel’s service life, navigating the toughest marine conditions.
