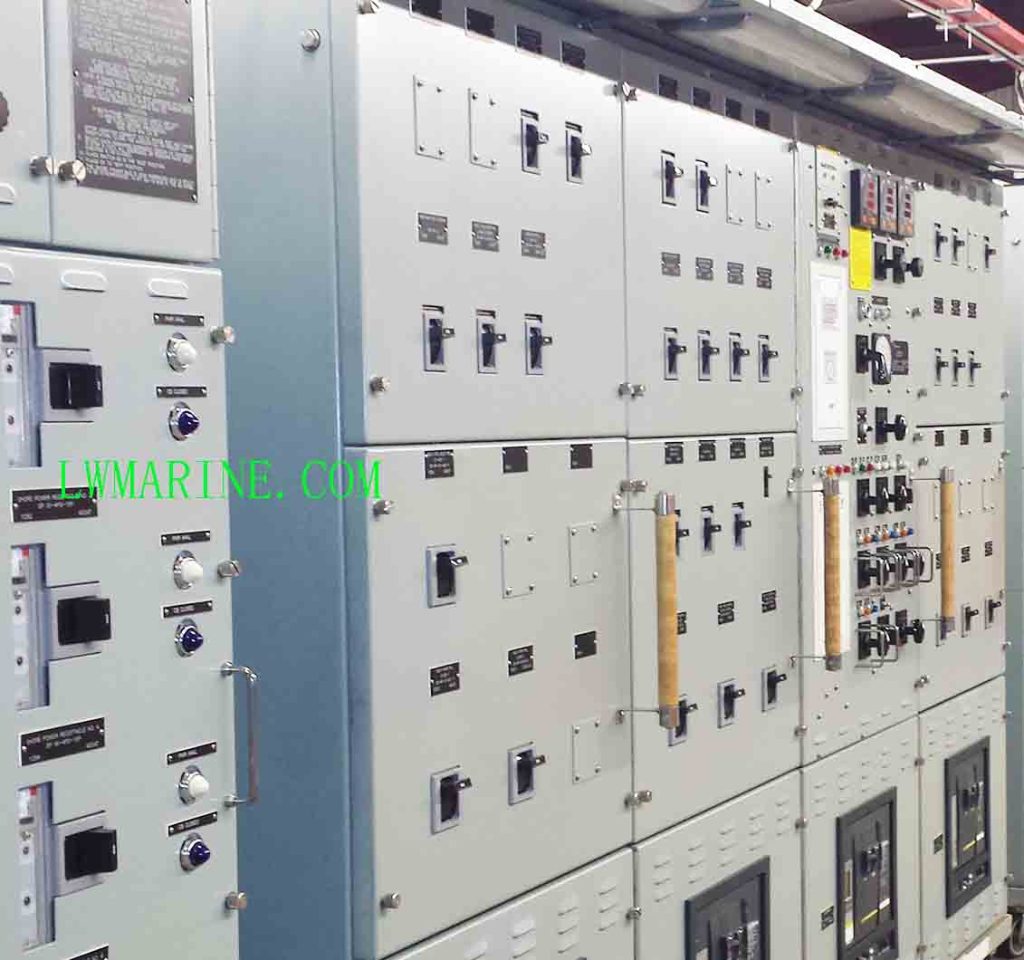

Introduction to Marine Switchboards
Marine switchboards and control panels serve as the central nervous system of a vessel’s electrical infrastructure, managing power distribution from generators to all electrical loads. These marine electrical panels combine robust engineering with intelligent control to ensure safe, efficient, and reliable operation in demanding maritime environments. Unlike industrial electrical gear, marine switchboards must withstand constant vibration, corrosive salt air, and extreme temperature fluctuations while meeting stringent international safety standards.
Core Components of Marine Switchboards
1. Main Switchboard (MSB)
Primary Functions:
- Centralized power distribution hub
- Generator synchronization and load sharing
- System protection and monitoring
Key Elements:
- Air Circuit Breakers (ACBs) for main power switching
- Synchronizing panel for generator paralleling
- Bus tie breakers for system configuration flexibility
- Power Management System (PMS) interface
2. Emergency Switchboard (ESB)
Critical Roles:
- Independent emergency power distribution
- Automatic transfer from main to emergency source
- Vital services continuity during emergencies
Design Features:
- Segregated from main system
- Fed by emergency generator
- SOLAS-compliant construction
3. Motor Control Centers (MCC)
Operational Purposes:
- Centralized motor control and protection
- Pump, fan, and winch operation management
- Integration with automation systems
Technical Components:
- Combination starters (contactor + overload)
- Variable Frequency Drives (VFDs)
- Soft starters for reduced inrush current
- Local/Remote control switching
Specialized Marine Switchboards
1. Engine Control Panels
Monitoring and Control Functions:
- Main engine start/stop sequencing
- Critical parameter monitoring (pressure, temperature)
- Alarm management system
2. Navigation System Panels
Bridge Equipment Integration:
- Radar and ECDIS power distribution
- Communication system controls
- Integrated monitoring displays
3. Cargo Handling Control Systems
Operational Features:
- Crane and winch control
- Ballast system management
- Tank monitoring instrumentation
Design Considerations for Marine Switchboards
1. Environmental Protection
Challenges Addressed:
- Saltwater corrosion
- High humidity
- Fungus growth
- Temperature extremes
Protection Methods:
- 316L stainless steel or marine-grade aluminum enclosures
- IP56-rated protection against water ingress
- Conformal coated electronic components
- Anti-condensation heaters
2. Vibration and Mechanical Stress
Mitigation Strategies:
- Shock-mounted panel structures
- Flexible busbar connections
- Vibration-resistant component mounting
- Cable management systems
3. Electrical Protection Systems
Safety Mechanisms:
- Selective coordination studies
- Arc flash mitigation
- Earth fault monitoring
- Surge protection devices
Advanced Technologies in Modern Marine Switchboards
1. Intelligent Power Management Systems (PMS)
Capabilities:
- Automatic load shedding
- Generator optimum loading
- Power quality monitoring
- Energy efficiency optimization
2. Digital Switching and Control
Innovative Features:
- Touchscreen HMIs
- Remote monitoring via Ethernet
- Data logging and trending
- Predictive maintenance alerts
3. Hybrid Power Integration
Future-Ready Designs:
- Battery storage system interfaces
- Shore power synchronization
- Renewable energy inputs
International Standards and Certifications
Regulatory Framework:
- Classification Society Rules:
- ABS (American Bureau of Shipping)
- DNV (Det Norske Veritas)
- LR (Lloyd’s Register)
- BV (Bureau Veritas)
- International Standards:
- IEC 60092-301/302 (Marine electrical installations)
- IEC 61439 (Low-voltage switchgear assemblies)
- SOLAS Chapter II-1 (Safety standards)
- IEEE 45 (Recommended Practice for Shipboard Electrical Installations)
Critical Certifications:
- Type approval certificates from classification societies
- ATEX/IECEx for hazardous areas
- EMC Directive compliance
- Environmental testing certifications
Installation and Maintenance Marine Switchboards
Installation Guidelines:
- Location Considerations:
- Adequate ventilation
- Emergency access
- Separation from high-vibration sources
- Commissioning Procedures:
- Insulation resistance testing
- Protection relay calibration
- Functional testing of all controls
Maintenance Protocols:
- Preventive Maintenance:
- Annual thermal imaging
- Busbar torque checks
- Contact resistance measurements
- Troubleshooting:
- Earth fault location
- Power quality analysis
- Protection coordination verification
Emerging Trends in Marine Switchboards
Future Developments:
- Solid-State Switchgear:
- Faster fault clearing
- Reduced maintenance
- Enhanced protection
- DC Power Distribution:
- Increased efficiency
- Simplified renewable integration
- Reduced cable weight
- AI-Powered Predictive Maintenance:
- Anomaly detection
- Failure prediction
- Optimization algorithms
Marine Switchboards Conclusion
Marine switchboards and control panels represent sophisticated power distribution systems specifically engineered for the unique challenges of the maritime environment. These shipboard electrical panels integrate robust mechanical construction with advanced control technologies to ensure continuous, safe, and efficient operation of all vessel electrical systems. Understanding the design principles, operational requirements, and maintenance protocols for marine power distribution equipment is essential for naval architects, marine engineers, and vessel operators.
As shipping moves toward more electrified and automated solutions, marine electrical panels will continue evolving with smarter monitoring capabilities, greater integration with alternative power sources, and enhanced safety features. Proper specification, installation, and maintenance of these critical systems remains fundamental to vessel safety, operational reliability, and regulatory compliance in an increasingly complex maritime electrical landscape.
