A Comprehensive Guide to Marine Rudder Blades: Types, Quality Standards, and Assembly Process
Meta Description: Explore the complete guide to ship rudder blades. Learn about rudder types (balanced, semi-balanced, unbalanced), construction methods, quality control standards, and the step-by-step assembly process for marine rudders.
Introduction to Marine Rudder Blades

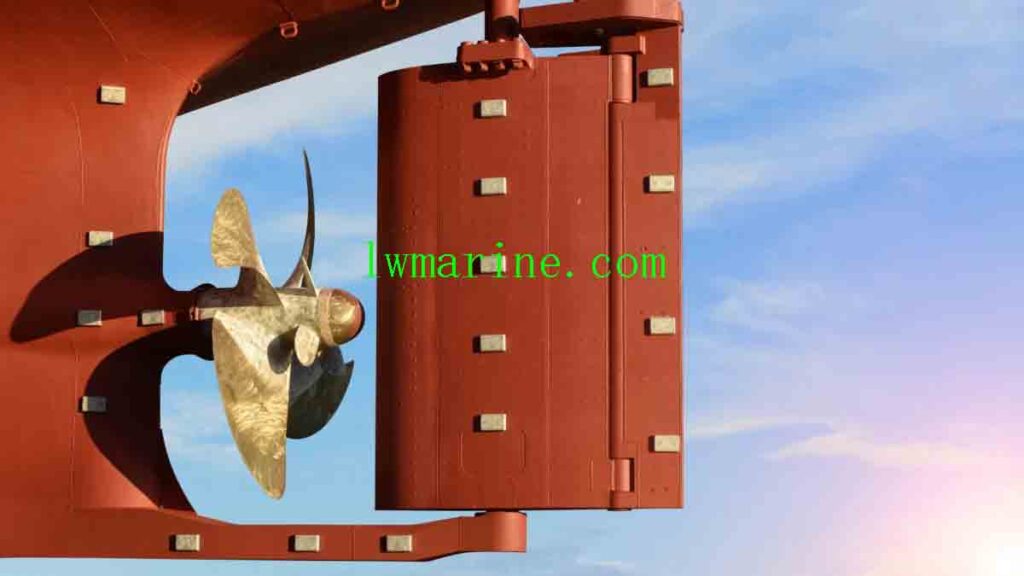

The marine rudder blade is the fundamental component responsible for generating steering force and controlling a vessel’s direction. Historically constructed from timber, modern ship rudder blades are predominantly fabricated from steel, welded into hollow, hydrofoil-shaped profiles to optimize hydrodynamic efficiency. These blades are connected to the rudder stock and pintle via cast steel components.
A typical rudder blade structure consists of a rudder plate, horizontal stiffeners, and vertical webs. Some vessels feature an enhanced design known as a bulb rudder, which incorporates a streamlined cap behind the propeller to improve water flow and overall propulsion efficiency.
Classification of Rudder Blades
1. By Axis Position:
The location of the rotational axis defines the rudder’s balance characteristics, impacting steering torque requirements.
- Unbalanced Rudder: The rotational axis is positioned at the forward edge of the blade. The entire rudder area is aft of the axis, resulting in high torque demands on the steering gear. This is a common marine rudder type for simpler vessels.
- Semi-Balanced Rudder: The axis is located such that only a portion of the rudder area is forward of it, partially balancing the water pressure torque. This design is often used in semi-spade rudder configurations.
- Balanced Rudder: The rotational axis is placed within the blade’s width, with a significant area forward of the axis. This creates a counteracting moment that “balances” the rudder, significantly reducing the torque required for turning. This is a key feature in modern balanced rudder design.
2. By Hull Connection Type:
The support structure determines the rudder’s mounting style.
- Spade Rudder (or Hanging Rudder): A fully balanced rudder suspended from the hull without lower support, common in modern yachts and ships.
- Semi-Spade Rudder: Partially supported, often correlating with a semi-balanced blade.
- Double-Supported Balanced Rudder: Supported by bearings at both the top and bottom.
- Multi-Supported Rudder (Ordinary Rudder): An unbalanced design supported by multiple pintles, typical in traditional shipbuilding.
3. By Cross-Sectional Profile:
The blade’s shape directly impacts performance and efficiency.
- Flat Plate Rudder: A simple, cost-effective design often used in balanced applications. It offers lower rudder effectiveness and hydrodynamic efficiency.
- Airfoil Rudder (or Streamlined Rudder): Constructed with a symmetrical, hollow-welded steel airfoil section. This profile minimizes drag and improves propulsive efficiency, making it the standard for most ocean-going vessels. Asymmetric profiles are reserved for specialized craft.
- High-Lift Rudder: Advanced designs like the Becker Rudder or Schilling Rudder fall into this category, offering superior maneuverability at low speeds.
Marine Rudder Blade Quality Control Standards
Strict marine rudder quality standards are essential for reliable performance and safety.
- Profile Symmetry: The rudder’s cross-section must be perfectly symmetrical about its centerline. Any asymmetry creates uneven pressure, leading to an adverse steering moment.
- Surface Smoothness: The blade surface must be hydraulically smooth, free from any local deformations or凹凸 (bumps and dents), to prevent flow separation and vibration.
- Geometric Accuracy: The entire blade must be free from twist, with all four corners lying in the same plane.
- Watertight Integrity: The hollow structure must be completely watertight, verified through rigorous rudder tightness testing.
Inspection and Testing:
- Dimensional Checks: All critical rudder blade dimensions are meticulously measured and recorded against specifications.
- Tightness Testing: Upon completion, the rudder undergoes either a water filling test or an air pressure test to ensure its sealed integrity before installation.
Rudder Blade Assembly Process
The fabrication of a welded steel rudder is a precise, multi-stage operation.
- Base Plate Assembly: The port-side rudder plate is positioned and tack-welded onto a assembly jig, aligned with the rudder stock centerline. Excess material is marked and trimmed, except for edges connecting to cast steel parts.
- Cast Steel Component Fitting: The upper and lower cast steel pieces (for stock and pintle connections) are initially positioned. Their alignment is critical: the centerline must coincide with the rudder’s centerline, and end faces must be perpendicular to the base plane. After marking and trimming the interface edges, they are formally positioned.
- Internal Structure Installation: The internal skeleton is assembled starting with the central horizontal stiffener, followed by vertical webs and subsequent horizontal and vertical stiffeners. Each component must be checked for verticality and alignment. Connections must be smooth, without local凹凸. Drain plugs are installed and welded at this stage.
- Leading and Trailing Edge Assembly: The leading edge plate and trailing edge bar are fitted. The position of the trailing edge bar may be adjusted to ensure the correct overall width of the rudder blade.
- Starboard Plate Installation: After all internal welds are completed and inspected, the starboard rudder plate is fitted. Plug weld locations are marked on the plate and adjusted to match the actual positions of the internal stiffeners to avoid “missed holes.”
- Final Inspection and Preparation: Before removal from the jig, final dimensional checks are performed, and the rudder centerline is permanently marked. Following machining of the cast steel interfaces, the rudder undergoes its final tightness test. Upon passing, the plug weld recesses are often filled with cement to create a perfectly smooth external surface, finalizing the ship rudder assembly.
