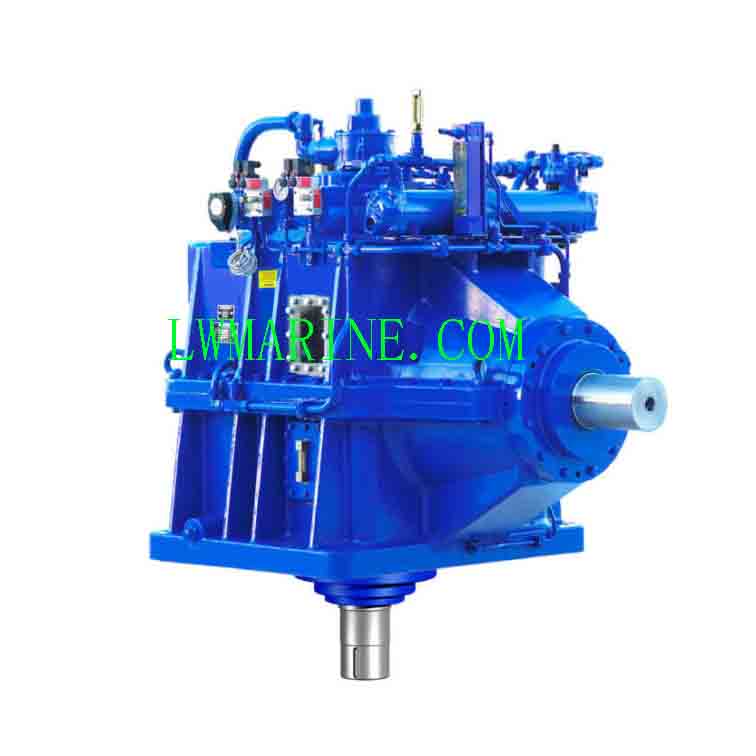

1. Introduction to Marine Gearboxes
Marine gearboxes serve as critical power transmission components between prime movers (diesel engines, turbines, or electric motors) and propulsion systems. These precision-engineered units adapt engine speed and torque characteristics to optimal propeller requirements while often incorporating power take-off capabilities for auxiliary systems.
2. Fundamental Operating Principles
2.1 Core Functions
- Speed reduction/increase between prime mover and propeller
- Torque multiplication for efficient power transfer
- Direction control (ahead/astern operation)
- Power splitting for multiple propulsion configurations
2.2 Key Performance Parameters
| Parameter | Typical Range | Importance |
|---|---|---|
| Power Capacity | 100kW-50MW | Determines application scope |
| Speed Ratio | 1:1 to 7:1 | Matches engine-propeller requirements |
| Efficiency | 96-98.5% | Impacts fuel consumption |
| Service Factor | 1.1-1.5 | Operational safety margin |
3. Classification of Marine Gearboxes Types
3.1 By Configuration
| Type | Characteristics | Applications |
|---|---|---|
| Parallel Shaft | Compact, cost-effective | Small/medium vessels |
| Planetary | High power density | Large commercial/military |
| Angle Drive | 90° power transfer | Z-drive applications |
| Multi-Path | Power splitting | DP vessels, hybrid systems |
3.2 By Control Method
- Fixed Ratio: Simple mechanical gear sets
- Controllable Pitch: Integrated with CPP systems
- Power Take-In/Power Take-Off (PTI/PTO): Hybrid configurations
- Dual Input/Single Output: Twin-engine installations
4. Marine Gearboxes Critical Design Components
4.1 Core Subsystems
- Gear Train: Helical, herringbone, or planetary arrangements
- Clutch System: Hydraulic, pneumatic, or mechanical engagement
- Lubrication System: Forced oil circulation with filtration
- Cooling System: Heat exchangers or integrated cooling
- Mounting System: Resilient or rigid mounting options
4.2 Advanced Features
- Torsional Vibration Dampers
- Condition Monitoring Ports
- Integrated Controllable Couplings
- Zero-Backlash Designs for precision applications
5. Material and Manufacturing Marine Gearboxes
5.1 Material Selection
- Gears: Case-hardened alloy steels (16MnCr5, 18CrNiMo7-6)
- Housings: Cast iron (GGG40) or fabricated steel
- Bearings: Special marine-grade alloys
- Shafts: High-tensile forged steel
5.2 Manufacturing Processes
- Precision gear grinding (DIN 3961/2 standards)
- Computer-controlled honing
- Laser alignment verification
- 3D scanning for quality control
6. Marine Gearboxes Performance Optimization
6.1 Efficiency Enhancements
- Optimized tooth profiles (modified involute)
- Advanced surface treatments (nitriding, coating)
- Micro-geometry corrections
- Stiffened housing designs
6.2 Noise Reduction Techniques
- Helical/herringbone gear designs
- Acoustic damping materials
- Precision-balanced components
- Resilient mounting systems
7. Maintenance and Troubleshooting Marine Gearboxes
7.1 Routine Maintenance
- Oil analysis programs (spectroscopy, particle counting)
- Vibration monitoring
- Bearing temperature tracking
- Seal integrity inspections
7.2 Common Failure Modes
- Micropitting fatigue
- Bearing spalling
- Tooth bending fatigue
- Lubrication-related failures
7.3 Advanced Diagnostics
- Online oil debris monitoring
- Acoustic emission analysis
- Thermographic inspections
- Vibration signature analysis
8. Marine Gearboxes Emerging Technologies
8.1 Innovative Developments
- Magnetic Gearing: Contactless power transmission
- Hybrid Gear-Electric Systems: Integrated motor-generator units
- Smart Gearboxes: Embedded sensor networks
- Additive Manufactured Components: Complex geometries
8.2 Future Trends
- AI-powered predictive maintenance
- Advanced composite materials
- Integrated power management systems
- Compact high-torque designs
9. Marine Gearboxes Application-Specific Solutions
Commercial Shipping:
- Heavy-duty reduction gears
- Fuel efficiency-optimized designs
- Long-service-interval configurations
Naval Vessels:
- Shock-resistant designs
- Silent running configurations
- Redundant system architectures
Specialty Craft:
- High-speed gearboxes
- Compact azimuth drive units
- Hybrid propulsion interfaces
10. Selection and Operation Guidelines
10.1 Selection Criteria
- Torsional vibration characteristics
- Alignment requirements
- Operational profile (continuous/intermittent)
- Environmental conditions
10.2 Operational Best Practices
- Proper run-in procedures
- Load sequencing protocols
- Emergency operation modes
- Lay-up preservation methods
11. Conclusion and Industry Marine Gearboxes
Modern marine gearbox technology continues evolving with:
- Increased integration with digital control systems
- Advanced materials for weight reduction
- Improved reliability through condition monitoring
- Hybridization with electric propulsion
Future developments will likely focus on:
- Fully integrated “smart” gear systems
- Alternative power transmission technologies
- Enhanced sustainability features
- Modular designs for flexible configurations
