Introduction to Marine Cables
Marine cables and wiring form the vital nervous system of any vessel, transmitting power and data throughout the ship’s infrastructure. Unlike terrestrial cabling, marine-grade electrical cables must withstand unique environmental challenges while meeting stringent safety standards. This comprehensive guide examines the specialized world of shipboard wiring systems, their construction, applications, and regulatory requirements.

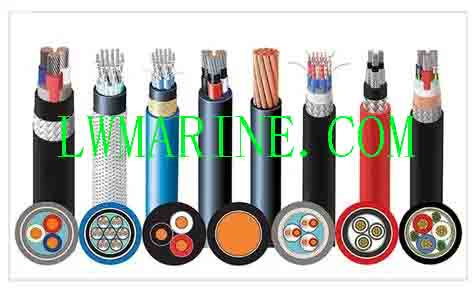

Types of Marine Cables
1. Power Distribution Cables
Primary Applications:
- Main generator to switchboard connections
- Power distribution to heavy machinery
- Shore power connections
Key Characteristics:
- Voltage ratings from 300V to 36kV
- Current capacity up to 5000A for main feeders
- XLPE (Cross-linked polyethylene) or EPR (Ethylene Propylene Rubber) insulation
- Tinned copper conductors for corrosion resistance
2. Control and Instrumentation Marine Cables
Critical Uses:
- Bridge to engine room communications
- Sensor networks
- Automation system wiring
Special Features:
- Multiple twisted pairs for noise immunity
- Individual shielding for EMI protection
- Fire-resistant construction
- Smaller gauges (typically 16-22 AWG)
3. Data and Communication Cables
Modern Applications:
- Navigation system networks
- CCTV and security systems
- Passenger entertainment networks
Technical Specifications:
- Category 6/6A for Ethernet
- Fiber optic options for long runs
- Water-blocking designs
- UV-resistant outer jackets for exposed areas
Marine Cables Construction
Core Components:
- Conductor:
- Tinned copper (99.9% pure)
- Class 2 (stranded) or Class 5 (flexible) per IEC 60228
- Compressed designs for reduced diameter
- Insulation:
- XLPE for high temperature resistance
- PVC for general purpose
- Silicon rubber for extreme flexibility
- Mineral insulated for fire survival cables
- Shielding:
- Copper tape for overall screen
- Braided copper for flexibility
- Drain wires for proper grounding
- Sheathing:
- LSZH (Low Smoke Zero Halogen) compounds
- Neoprene for oil resistance
- PCP (Polychloroprene) for flame retardancy
Environmental Challenges and Solutions
1. Corrosion Protection
Threats:
- Saltwater exposure
- High humidity
- Chemical contamination
Protection Methods:
- Tinned copper conductors
- Corrosion-resistant sheathing
- Water-blocking tapes
- Stainless steel armor for critical areas
2. Mechanical Stress
Challenges:
- Constant vibration
- Hull flexing
- Impact damage
Durability Features:
- High strand count conductors
- Extra-flexible designs
- Aramid yarn reinforcement
- Proper cable support systems
3. Temperature Extremes
Operating Conditions:
- Arctic (-60°C) to engine room (+110°C) environments
Thermal Solutions:
- Wide temperature range materials
- Proper derating factors
- Heat-resistant insulation
International Standards and Certifications
Key Regulatory Bodies:
- Classification Societies:
- ABS (American Bureau of Shipping)
- DNV (Det Norske Veritas)
- LR (Lloyd’s Register)
- BV (Bureau Veritas)
- International Standards:
- IEC 60092-350/353/359 (Marine cable standards)
- IEEE 1580 (IEEE Standard for Marine Cable)
- SOLAS (Safety of Life at Sea)
- MARPOL (Environmental protection)
Critical Certifications:
- Fire resistance (IEC 60331)
- Flame propagation (IEC 60332)
- Smoke emission (IEC 61034)
- Toxicity (IEC 60754)
Marine Cables Installation Best Practices
Cable Routing Principles:
- Separation Requirements:
- Power vs. signal cables
- Emergency vs. normal circuits
- Redundant system segregation
- Support Systems:
- Proper cable tray sizing
- Adequate support spacing
- Expansion joints in long runs
- Connection Methods:
- Waterproof glanding
- Proper termination techniques
- Corrosion-resistant connectors
Maintenance Considerations:
- Preventive Measures:
- Regular insulation resistance testing
- Thermographic inspections
- Connection tightness checks
- Troubleshooting:
- Earth fault location
- Signal integrity testing
- Continuity verification
Marine Cables Emerging Technologies
Future Trends:
- Composite Conductors:
- Aluminum-core with copper cladding
- Carbon fiber reinforced cables
- Smart Cables:
- Integrated temperature monitoring
- Strain sensing capabilities
- Moisture detection systems
- Advanced Materials:
- Superhydrophobic coatings
- Self-healing insulation
- Nanocomposite shielding
Conclusion
Marine cables represent a sophisticated engineering solution designed to reliably transmit power and information in one of Earth’s most challenging environments. Understanding the specialized construction, proper selection criteria, and installation requirements of shipboard wiring systems is essential for naval architects, marine engineers, and vessel operators. As marine electrical systems become increasingly complex and vessels push operational envelopes, continued innovation in marine cable technology will remain critical for safety, efficiency, and regulatory compliance at sea.
Proper specification, installation, and maintenance of marine cables not only ensures operational reliability but also significantly contributes to overall vessel safety and environmental protection. By adhering to international standards and implementing best practices, the maritime industry can continue to rely on these vital components that quite literally keep the lights on and engines running across the world’s oceans.
