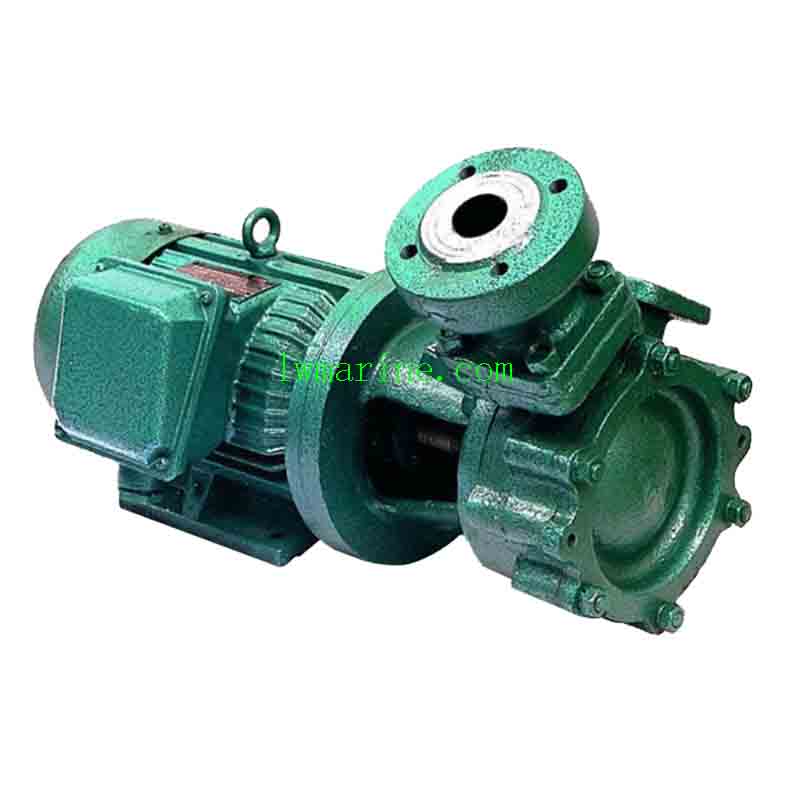

Marine vortex pumps are essential for various shipboard applications, including bilge pumping, ballast transfer, and firefighting systems. Known for their self-priming capabilities and ability to handle gas-liquid mixtures, these pumps require proper installation, commissioning, operation, and maintenance to ensure reliability and longevity. This guide covers best practices for each stage, along with critical considerations and FAQs for optimal performance.
1. Installation of Marine Vortex Pumps
Key Steps
- Foundation Preparation: Ensure a stable, vibration-free foundation. Use anti-vibration mounts if necessary to minimize noise and wear.
- Alignment: Align the pump shaft with the driver (e.g., motor) using laser alignment tools or dial indicators. Misalignment can cause excessive vibration, bearing failure, and premature seal wear.
- Piping Connection: Install suction and discharge piping with proper supports to avoid stress on the pump casing. Use flexible couplings or expansion joints to accommodate thermal expansion.
- Electrical Wiring: Follow manufacturer guidelines for motor wiring, ensuring proper grounding and compliance with marine electrical standards (e.g., IEC 60092).
- Seal Installation: For mechanical seals, ensure clean installation without contamination. Check O-rings and gaskets for damage before assembly.
Critical Considerations
- Suction Head: Maintain adequate suction head to prevent cavitation, especially in seawater applications.
- NPSH (Net Positive Suction Head): Calculate NPSH required (NPSHr) and available (NPSHa) to avoid vaporization of the liquid inside the pump.
- Priming: If the pump is not self-priming, install a priming system (e.g., vacuum pump or foot valve) to prevent dry running.
2. Commissioning of Marine Vortex Pumps
Key Steps
- Pre-Startup Checks:
- Verify all bolts and fasteners are tightened to the specified torque.
- Check lubrication levels in bearings and mechanical seals.
- Ensure the pump is filled with liquid (if not self-priming).
- Dry Run Test: Perform a brief dry run (if permitted by the manufacturer) to check rotation direction and mechanical integrity.
- Wet Run Test:
- Gradually open the suction valve and start the pump.
- Slowly open the discharge valve while monitoring pressure, flow, and vibration.
- Check for leaks at seals and flanges.
- Performance Verification: Compare actual performance (head, flow, power consumption) with manufacturer curves to ensure the pump operates within design limits.
Critical Considerations
- Avoid Overloading: Do not run the pump against a closed discharge valve for extended periods, as this can cause overheating and seal failure.
- Vibration Monitoring: Use portable vibration analyzers to detect misalignment or imbalance during commissioning.
- Thermal Growth: Account for thermal expansion of piping and equipment during initial operation.
3. Operation of Marine Vortex Pumps
Best Practices
- Start/Stop Procedures:
- Always close the discharge valve before stopping the pump to prevent water hammer.
- Use a soft starter or variable frequency drive (VFD) to reduce inrush current and mechanical stress during startup.
- Monitoring:
- Continuously monitor pressure, flow, temperature, and vibration using sensors or manual checks.
- Implement a predictive maintenance program using IoT-enabled sensors for real-time data.
- Load Management: Avoid operating the pump at less than 30% of its design flow rate, as this can cause recirculation and damage to the impeller.
Critical Considerations
- Cavitation Prevention: Maintain proper NPSHa by ensuring sufficient suction head and minimizing suction-side friction losses.
- Corrosion Resistance: Use materials like duplex stainless steel or bronze for seawater applications to resist corrosion.
- Energy Efficiency: Optimize pump operation using VFDs to match system demand and reduce energy consumption.
4. Maintenance of Marine Vortex Pumps
Preventive Maintenance Tasks
- Lubrication:
- Change bearing grease or oil according to the manufacturer’s schedule (typically every 500–2000 operating hours).
- Use high-quality marine-grade lubricants to resist saltwater contamination.
- Seal Inspection:
- Check mechanical seals for leaks and replace worn faces or O-rings promptly.
- For packed glands, adjust the packing gland pressure to maintain a drip rate of 10–20 drops per minute.
- Impeller Cleaning: Remove debris or scale buildup from the impeller and volute to maintain efficiency.
- Alignment Check: Re-align the pump and motor annually or after major repairs to prevent premature wear.
Critical Considerations
- Spare Parts Inventory: Maintain a stock of critical spare parts (e.g., mechanical seal kits, bearings, impellers) to minimize downtime.
- Condition-Based Maintenance: Use vibration analysis, oil analysis, and thermography to detect early signs of wear or failure.
- Documentation: Keep detailed records of maintenance activities, including dates, parts replaced, and observations.
5. Repair of Marine Vortex Pumps
Common Repairs
- Bearing Replacement:
- Use precision bearings rated for marine environments.
- Ensure proper clearance and preload during installation.
- Mechanical Seal Overhaul:
- Inspect seal faces for wear or scoring.
- Replace springs and O-rings if damaged.
- Impeller Repair:
- Weld cracks or erosion pits using approved materials (e.g., stainless steel electrodes for seawater pumps).
- Balance the impeller after repair to prevent vibration.
- Casing Repair:
- Patch minor leaks in the pump casing using epoxy or welding (consult manufacturer guidelines).
- For severe corrosion, consider casing replacement.
Critical Considerations
- Root Cause Analysis: Investigate the underlying cause of failure (e.g., cavitation, misalignment, corrosion) to prevent recurrence.
- Hydrostatic Testing: After major repairs, perform a hydrostatic test to verify casing integrity before reinstallation.
- Certification: Ensure repairs comply with classification society rules (e.g., DNV, ABS, Lloyd’s Register).
5 Related FAQs
Q1: How often should I perform maintenance on a marine vortex pump?
A: Preventive maintenance intervals depend on usage, but typical schedules include:
- Lubrication: Every 500–2000 hours.
- Seal inspection: Monthly.
- Alignment check: Annually or after repairs.
Q2: What are the signs of cavitation in a marine vortex pump?
A: Symptoms include:
- Unusual noise (rattling or knocking).
- Reduced flow or pressure.
- Erosion or pitting on the impeller.
Q3: Can I use a marine vortex pump for bilge pumping?
A: Yes, but ensure the pump is designed for bilge water (e.g., self-priming, corrosion-resistant materials). Avoid pumping oils or chemicals unless the pump is rated for such service.
Q4: How do I select the right marine vortex pump for my application?
A: Consider:
- Flow rate and head requirements.
- Liquid properties (viscosity, temperature, corrosiveness).
- NPSH available vs. required.
- Space constraints and power availability.
Q5: What is the lifespan of a marine vortex pump?
A: With proper maintenance, marine vortex pumps can last 10–20 years. Factors affecting lifespan include:
- Operating conditions (e.g., continuous vs. intermittent use).
- Maintenance practices.
- Quality of installation and alignment.
By following these guidelines, ship operators can ensure reliable performance, minimize downtime, and extend the service life of marine vortex pumps. For further assistance, consult the pump manufacturer’s manual or engage a certified marine engineer..
